DXR 315
Husqvarna Construction · Demolition Robots
Husqvarna Construction
DXR 315
By Husqvarna Construction
· SKU: UHCN DXR315 970517601

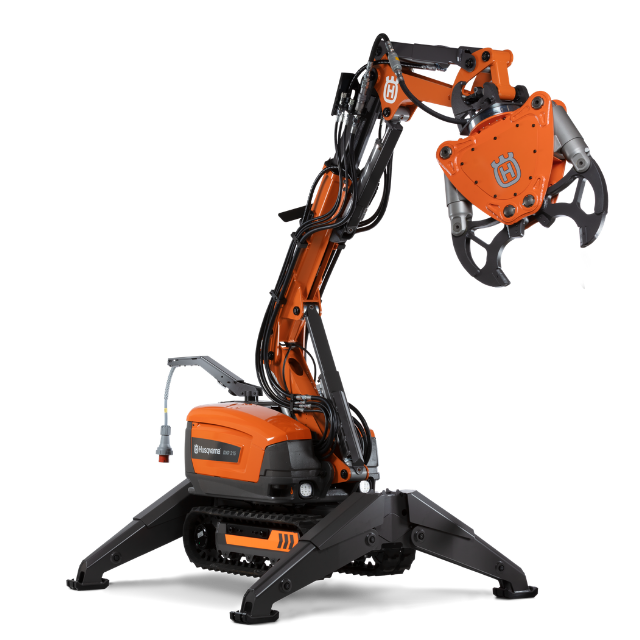

The Husqvarna DXR 315 is a powerful remote-controlled demolition robot featuring a telescopic arm for demanding demolition and dismantling work in confined or hazardous environments. Its 27 kW power, 5.5 m upward reach and individually controlled outriggers provide excellent reach, stability and precise tool positioning.
Power
27 kW
Max. Upward Reach
5.5 m
Weight
2,110 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Superb Power-To-Weight Ratio
Compact and powerful in relation to the low weight. Its large footprint enables a high workload.
Compact Design and Low Weight
Gives good access to confined spaces and high manoeuvrability.
Precise Positioning
The set-up of the arm system combined with the software gives smooth and precise positioning of the tool.
Easy Transportation
The casted baseplate has integrated lift bails.
Power & Hydraulic System
| Power Source | Electric |
| Rated Input Power | 27 kW |
| Maximum Hydraulic Oil Flow | 85 L/min |
| Hydraulic Feature Package P1 | Factory Installed |
| Extra Hydraulic Function Control | Yes |
| Automatic Breaker Greasing | Yes |
Operating Performance
| Maximum Upward Reach | 5.5 m |
| Arm Rotation Angle | 360° |
| Maximum Remote-Control Operating Range | 300 m |
| Telescopic Arm | Yes |
| Individually Controlled Outriggers | Yes |
| Precise Tool Positioning | Yes |
Dimensions & Weight
| Machine Width | 770 mm |
| Complete Product Weight, Standard Configuration | 2,110 kg |
| Weight With Extended Hydraulic Function And Cylinder Protection | 2,130 kg |
| Weight With Enhanced Cooling | 2,135 kg |
| Weight With Heat Protection | 2,255 kg |
Remote Control
| Control Type | Wireless Remote Control |
| Maximum Operating Range | 300 m |
| Live Current Monitoring | Yes |
| Live Voltage Monitoring | Yes |
| Live Temperature Monitoring | Yes |
| Active Fault Display | Yes |
| Operating-Time Display | Yes |
| Display Adaptable To Bright And Dark Conditions | Yes |
| Ergonomic Shoulder Hook | Yes |
| Waist Belt | Included |
Features
| Telescopic Arm | Yes |
| 360° Rotatable Arm | Yes |
| Individually Controlled Outriggers | Yes |
| Integrated LED Work Lights | Yes |
| Integrated Lifting Points | Yes |
| One-Piece Cast Baseplate | Yes |
| Automatic Breaker Greasing | Yes |
| Adjustable Operating Parameters | Yes |
| Predefined Tool Settings | Yes |
| Removable Service Covers | Yes |
| Low Centre Of Gravity | Yes |
Compatible Tool Types
| Hydraulic Breakers | Yes |
| Concrete Crushers | Yes |
| Steel Shears | Yes |
| Grapplers | Yes |
Factory Options
| Extended Hydraulic Function And Cylinder Protection | Available |
| Enhanced Cooling | Available |
| Heat Protection | Available |
The following accessories are compatible with the DXR 315. Click any item to view its product page.
Product Brochure
Husqvarna Construction DXR 315
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
