DCR 100
By Husqvarna Construction

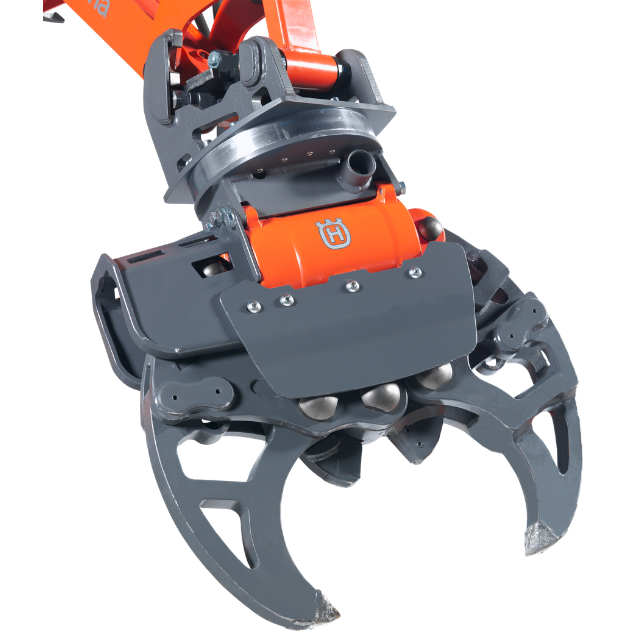

The Husqvarna DCR 100 is a hydraulic concrete crusher designed for demolishing concrete, brickwork, staircases, roofs and structures in sensitive indoor locations. Its 34t crushing force, 94t rebar-cutting force and adjustable 425mm jaw opening provide versatile and controlled demolition with the Husqvarna DXR 145.
Max. Crushing Force
34 t
Max. Jaw Opening
425 mm
Weight
192 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
General
| Product Type | Concrete Crusher Attachment |
| Power Source | Hydraulic Power From Compatible DXR Demolition Robot |
| Article Number | 966 78 63-01 |
Crushing Performance
| Maximum Crushing Force | 34 t / 335 kN |
| Crushing Force With Jaw Pins In Inner Position | 32 t / 317 kN |
| Maximum Cutting Force | 94 t / 920 kN |
| Maximum Rebar Cutting Diameter | 28 mm |
| Maximum Jaw Opening | 425 mm |
| Minimum Distance Between Jaw Tips | 25 mm |
| Jaw Depth | 185 mm |
| Jaw Adjustment | Adjustable Pin Positions |
Hydraulic System
| Maximum Hydraulic Oil Flow | 55 L/min |
| Maximum Incoming Pressure | 200 bar |
| Operating Pressure | 200 bar |
| Closing Time At 52 L/min | 3.7 s |
| Opening Time At 52 L/min | 2.0 s |
Movement
| Rotation Angle | 360° |
Dimensions
| Product Length | 1,000 mm |
| Product Width | 730 mm |
| Product Height | 330 mm |
| Weight With Connection Plate And Hoses | 192 kg |
Equipment
| Crushing Tips | Included |
| Rebar Cutters | Included |
| Hydraulic Hoses | Included |
| Quick Couplings | Included |
| Adapter Plate | Included |
| Lifting Point | Included |
Compatibility
| Compatible Current Model | Husqvarna DXR 145 |
| Compatible Legacy Model | Husqvarna DXR 140 |
Applications
| Concrete Demolition | Yes |
| Brick Construction Demolition | Yes |
| Staircase Demolition | Yes |
| Roof Demolition | Yes |
| Indoor And Sensitive-Area Demolition | Yes |
