DXR 145
Husqvarna Construction · Demolition Robots
Husqvarna Construction
DXR 145
By Husqvarna Construction
· SKU: UHCN DXR145 970509701

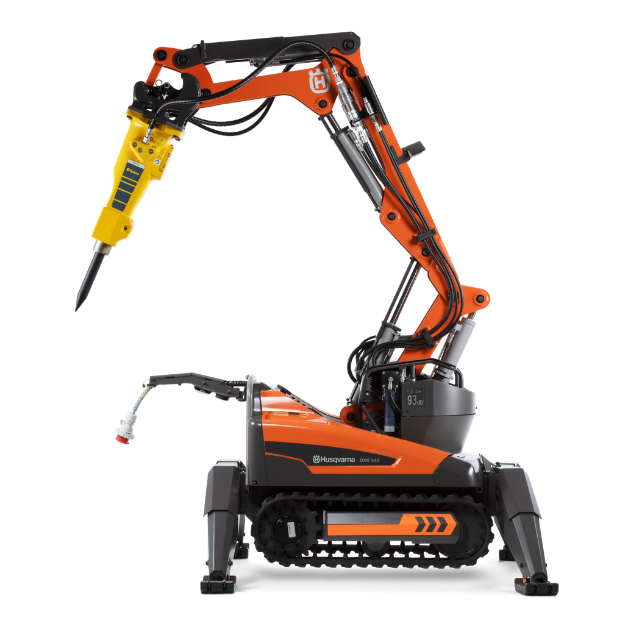

The Husqvarna DXR 145 is a compact remote-controlled demolition robot designed for efficient demolition and dismantling in confined or hazardous environments. Its 18.5 kW motor, 360° rotating arm and 4.4 m upward reach provide powerful and precise operation with the operator positioned at a safer distance.
Power
18.5 kW
Max. Upward Reach
4.4 m
Weight
1,040 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Superb Power-To-Weight Ratio
Compact and powerful in relation to the low weight. Its large footprint enables a high workload.
Compact Design and Low Weight
Gives good access to confined spaces and high manoeuvrability.
Precise Positioning
The set-up of the arm system combined with the software gives smooth and precise positioning of the tool.
Easy Transportation
The casted baseplate has integrated lift bails.
Power & Electrical System
| Power Source | Electric |
| Rated Input Power | 18.5 kW |
| Rated Voltage At 50 Hz | 380–420 V |
| Rated Voltage At 60 Hz | 440–480 V |
| Rated Current At 50 Hz | 32 A |
| Rated Current At 60 Hz | 30 A |
| Motor Speed At 50 Hz | 2,885 rpm |
| Motor Speed At 60 Hz | 3,500 rpm |
Hydraulic System
| Hydraulic System Volume | 40 L |
| Pump Type | Load-Sensing Axial Piston Pump With Variable Displacement |
| Maximum Hydraulic Oil Flow | 52 L/min |
| Standard Hydraulic Pressure | 200 bar |
| Increased Main Hydraulic Pressure | 250 bar |
| Breaker Pressure | 160 bar |
| Concrete Crusher Pressure | 200 bar |
| Steel Shear Pressure | 250 bar |
| Grappler Pressure | 250 bar |
| Drum Cutter Pressure | 200 bar |
| Caterpillar Track Tension And Retracted Outrigger Pressure | 130 bar |
Operating Performance
| Maximum Upward Reach | 4.4 m |
| Maximum Forward Reach With SB 152 | 3.751 m |
| Maximum Breaker Depth With SB 152 | 1.879 m |
| Arm Rotation Angle | 360° |
| Rotation Speed | 6 rpm |
| Maximum Transport Speed | 3 km/h |
| Maximum Slope Angle | 30° |
| Maximum Recommended Tool Weight | 200 kg |
Dimensions
| Machine Width | 771 mm |
| Length Without Arm System | 1,555 mm |
| Length With Arm System | 1,932 mm |
| Height Without Arm System | 854 mm |
| Height With Retracted Arm And Outriggers | 1,215 mm |
| Width With Extended Outriggers | 1,625 mm |
| Ground Contact Width With Extended Outriggers | 1,548 mm |
| Distance Between Extended Outriggers | 1,614 mm |
Weight
| Complete Product Weight, Standard Configuration | 1,040 kg |
| Complete Product Weight With Extended Hydraulic Function And Cylinder Protection | 1,050 kg |
| Weight With Rubber Tracks, Without Tool | 985 kg |
| Weight With Steel Tracks, Without Tool | 1,084 kg |
Remote Control
| Signal Transmission | Radio Or Cable |
| Radio Frequency | 2.4 GHz |
| Maximum Operating Range | 300 m |
| Battery Specification | 7.2 V, 5,100 mAh |
| Batteries Supplied | 2 Li-Ion Batteries |
| Typical Operating Time | 12 h |
| Typical Charging Time | 3 h |
| Remote-Control Protection Rating | IP65 |
| Remote-Control Weight | 3.25 kg |
| Remote-Control Dimensions | 400 × 216 × 291 mm |
| Battery Charger Power Supply | 12 / 24 V DC Or 110 / 230 V AC |
Features
| Remote-Controlled Operation | Yes |
| 360° Rotatable Arm | Yes |
| Individually Controlled Outriggers | Yes |
| Live Machine-Status Monitoring | Yes |
| Adjustable Operating Parameters | Yes |
| Automatic Breaker Greasing | Yes |
| Integrated LED Work Lights | Yes |
| Integrated Lifting Points | Yes |
| Hydraulic Feature Package P1 | Factory Installed |
| Cylinder Protection | Available |
| Ergonomic Remote-Control Shoulder Hook | Yes |
Sound & Noise
| Sound Power Level Without Tool, Measured | 92 dB(A) |
| Sound Power Level Without Tool, Guaranteed | 95 dB(A) |
The following accessories are compatible with the DXR 145. Click any item to view its product page.
Product Brochure
Husqvarna Construction DXR 145
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
