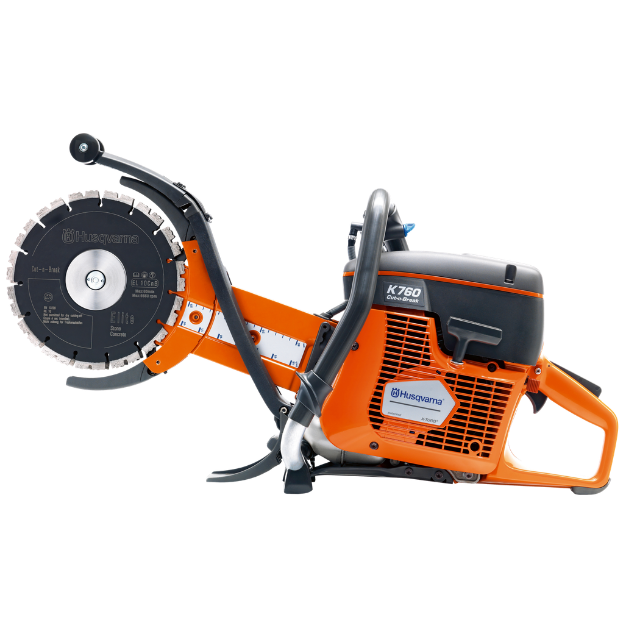

K 760 Cut-N-Break
Husqvarna Construction · Petrol
Husqvarna Construction
K 760 Cut-N-Break
By Husqvarna Construction
Our Cut-n-Break method is the natural choice when you need to cut deep at low maintenance costs. The K 760 Cut-n-Break enables you to cut as deep as 400 mm from one side. The two high-speed blades make a core in the saw cut, which can then easily be broken off using the accompanying breaking tool.
Displacement
73.5 cm³
Max. Cutting Depth
400 mm
Weight
9.6 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Cost-efficient Cutting Method
With the unique cut-n-break method you can work your way through the material step-by-step at a low tool cost.
Exceptional Cutting Depth
The long body and double cutting blades allow you to make cuts up to 400 mm deep.
SmartCarb™
Our built-in automatic filter compensation maintains high power during the air filter life time.
High Power With Less Fuel
Our built-in automatic filter compensation SmartCarb™ maintains high power and lowers fuel consumption.
Engine
| Power Source | Petrol |
| Engine Type | 2-Stroke Engine |
| Cylinder Displacement | 73.5 cm³ |
| Output Power | 3.7 kW / 5 hp |
| Maximum Power Speed | 9,000 rpm |
| Idle Speed | 2,700 rpm |
| Maximum No-Load Speed | 9,300 rpm |
| Cylinder Bore | 51 mm |
| Stroke Length | 36 mm |
| Number Of Cylinders | 1 |
| Fuel Tank Capacity | 0.9 L |
| Spark Plug | Champion RCJ 6Y / NGK BPMR 7A |
| Electrode Gap | 0.5 mm |
Cutting Equipment
| Cutting System | Cut-n-Break Twin-Blade System |
| Maximum Cutting Depth | 400 mm / 16" |
| Maximum Blade Diameter | 230 mm / 9" |
| Maximum Output Shaft Speed | 5,900 rpm |
| Maximum Peripheral Speed | 80 m/s |
| Twin Diamond Blades | Included |
| Breaking Tool | Included |
Water System
| Blade Water Cooling | Yes |
| Recommended Water Pressure | 0.5–10 bar |
| Progressive Water Valve | Yes |
| Wet Cutting Kit | Included |
| Low Water Consumption | Yes |
Features
| X-TORQ® Engine | Yes |
| Air Purge | Yes |
| Decompression Valve | Yes |
| Anti-Vibration System | Yes |
| Smooth Blade Stop | Yes |
| Deep Cutting Capability | Yes |
| Flush Cutting Capability | Yes |
| Low-Slurry Cutting | Yes |
| Easy-Start System | Yes |
Dimensions
| Product Length | 798 mm |
| Product Width | 246 mm |
| Product Height | 446 mm |
| Weight Without Fuel And Cutting Blades | 9.6 kg |
| Weight Without Fuel, Including Cutting Blades | 11.1 kg |
Sound & Noise
| Sound Power Level, Guaranteed | 115 dB(A) |
| Sound Pressure Level At Operator's Ear | 101 dB(A) |
Vibration
| Left / Front Handle Vibration Level | 1.9 m/s² |
| Right / Rear Handle Vibration Level | 2.8 m/s² |
Emissions
| Exhaust Emissions | 711 g/kWh |
