K 1270 Rail (16")
Husqvarna Construction · Petrol
Husqvarna Construction
K 1270 Rail (16")
By Husqvarna Construction

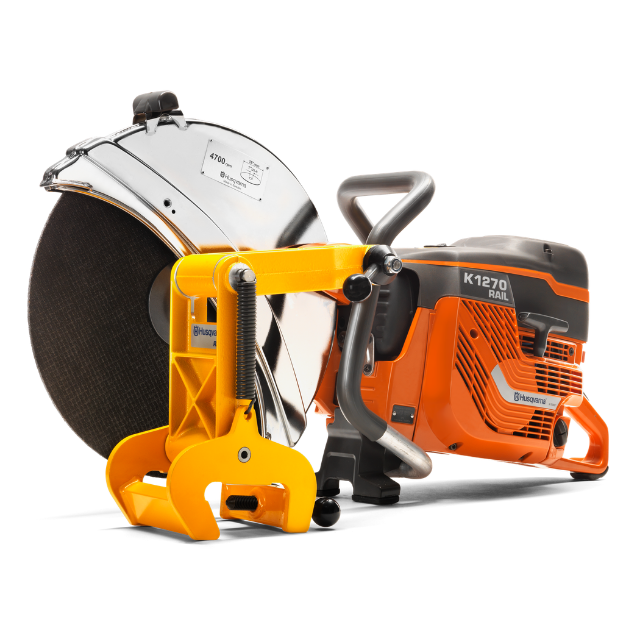

The Husqvarna K 1270 Rail is a powerful petrol rail cutter designed for fast, straight and precise cutting on railway, tram and metro tracks. Its 118.8 cm³ X-TORQ® engine, 16" blade capacity, double attachment mountings and fast rail-mounting system provide strong performance and stable cutting from both sides of the track.
Displacement
118.8 cm³
Max. Cutting Depth
145 mm
Weight
16 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Anti-vibration System
Reduced vibrations in the cutter handle for more comfort and longer operation periods.
Perfect Right-angle Cuts
The RA 10 attachment fastens to the track to ensure a perfect right-angle cut.
Cutting From Both Sides
The RA 10 attachment is included as standard and allows cutting from both sides of the track.
Fast, Stable Mounting
Fast, stable mounting of the attachment onto the track.
Engine
| Power Source | Petrol |
| Engine Type | 2-Stroke Engine |
| Cylinder Displacement | 118.8 cm³ |
| Output Power | 5.8 kW / 7.8 hp |
| Maximum Engine Speed | 9,300 rpm |
| Maximum Power Speed | 8,400 rpm |
| Cylinders | 1 |
| Exhaust Emissions | 726 g/kWh |
Cutting Equipment
| Maximum Cutting Depth | 145 mm |
| Maximum Blade Diameter | 400 mm / 16" |
| Arbor Diameter | 25.4 mm / 1" |
| Maximum Blade Thickness | 5 mm |
| Maximum Peripheral Speed | 90 m/s |
| Coolant | Dry |
Rail Attachment
| Rail Attachment | RA10 / RA10S |
| Rail Type | Vignole Rails / Grooved Rails |
| Clamp Switch | No |
| Cutting From Both Sides | Yes |
| Quick Rail Mounting | Yes |
Features
| X-TORQ® Engine | Yes |
| Active Air Filtration™ | Yes |
| Maintenance-Free Air Filter | Yes |
| Air Purge | Yes |
| Decompression Valve | Yes |
| Anti-Vibration System | Yes |
| Fully Sealed Transmission | Yes |
| Double Attachment Mountings | Yes |
| Fast And Stable Mounting | Yes |
Dimensions
| Head Width, Maximum | 85 mm / 135 mm |
| Product Length | 771 mm |
| Product Width | 241 mm |
| Product Height | 476 mm |
| Weight | 16 kg |
Sound & Noise
| Sound Power Level, Guaranteed | 117 dB(A) |
| Sound Pressure Level At Operator's Ear | 104 dB(A) |
Vibration
| Left / Front Handle Vibration Level | 6.1 m/s² |
| Right / Rear Handle Vibration Level | 5.8 m/s² |
