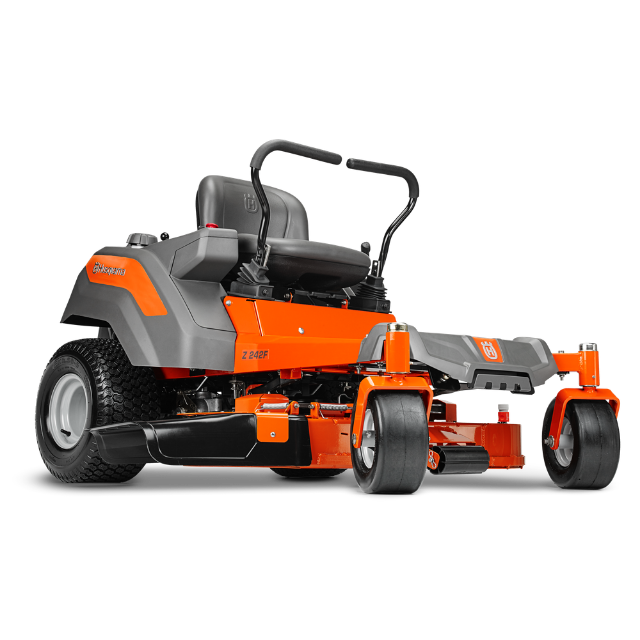

Performance and style hit the grass running with the all new Z200 Series Zero Turn Mowers. Cutting edge design, proven performance and new innovative features combine to make lawn maintenance an event instead of a chore.

Cylinder Displacement Weight
724 cm³  255.825 kg


  • ClearCut™ fabricated cutting deck
  • Maintenance-free hydraulic transmission
  • Rugged frame and casters ensure durability
  • Convenient deck lift
  • Ergonomic control panel
  • Removable foot plate
  • Anti-slip foot area
  • Bumper
  • Refinement
  • Automatic park brake system
  • Endurance Commercial Engine
  • Rear engine guard
Rugged frame and casters

The robust frame and casters ensure durability and reduced chassis flex.

Maintenance-Free Transmission

Worry free performance with maintenance free, integrated zero- turn transmissions.

ClearCut™ fabricated cutting deck

ClearCut™ deck technology features deep deck design, air flow control baffles, high performance blades and top discharge for superior cutting performance whether discharging, bagging or mulching.

Convenient deck lift

The deck lift system is spring assisted for ease of use and conveniently located within easy reach of the operator.


Battery capacity 18 Ah
Battery type Lead / Acid
Battery voltage 12 V
Blade-tip speed 93.98 m/s
Horsepower 17.15 kW
Power output 16.4 kW
Commercial Warranty No warranty
Homeowner Warranty 3 Years
Article gross weight 329308 g
Article net weight 259908 g
Base machine, height 101.6 cm
Base machine, length 190.5 cm
Base machine, width (chute down) 129.54 cm
Base machine, width (chute up) 110 cm
Base machine, width 122 cm
Cutting height steps 6
Deck thickness 3.5 mm
Seat back height High
Weight 255.825 kg
Wheel/rim size, front Diameter 5 in
Wheel/rim size, rear Diameter 8 in
Cylinder displacement 724 см³
Cylinders 2
Engine cooling Air
Engine name Endurance Commercial
Motor/engine manufacturer Briggs & Stratton
Motor/engine model Endurance Commercial
Air filter type Auto-type Paper
Anti-scalp wheels 1
Armrests No
BioClip® kit Available as accessory
Blade engagement Electric clutch
Blade type High-Lift blade
Blades 2 pcs
Collector Available as accessory
Cup holder Yes
Cutting deck type ClearCut™ – Fabricated
Cutting methods Collect/Mulch/Side discharge
Deck lifting system Manual, hand operated
Deck Wash Port yes
Drive method Lever-operated
Drive system Rear wheel drive
Drive wheels rear
Electric start yes
Headlights no
Hour meter type Digital with pre-programmed service intervals
Nose roller Yes
Seat spring Yes
Seat type 15″ high back
Engine lubrication type Full pressure with oil filter
Fuel consumption 6.89 l
Fuel tank location Side (single)
Fuel tank volume (with reserve) 13.25 l
Oil capacity 2.1 l
Oil filter Yes
Power/fuel type Gasoline
Cutting deck material Steel
Powder-coated cutting deck Yes
Seat material Vinyl
Spindle/mandrel type Cast iron
Packaging gross weight 69.16 kg
Packaging height 876 mm
Packaging length 1981 mm
Packaging volume 2791.08 dm³
Packaging weight 315.25 kg
Packaging width 1549 mm
Quantity in Master pack 1
Sound and Noise
Sound level 100 dB(A)
Sound power level, guaranteed (LWA) 100 dB(A)
Sound power level, measured 100 dB(A)
Sound pressure level at operators ear 86 dB(A)
Vibration level seat 0.29 m/s²
Vibration level steering wheel 1.9 m/s²
