WSC 40
Husqvarna Construction · Wall Saws
Husqvarna Construction
WSC 40
By Husqvarna Construction

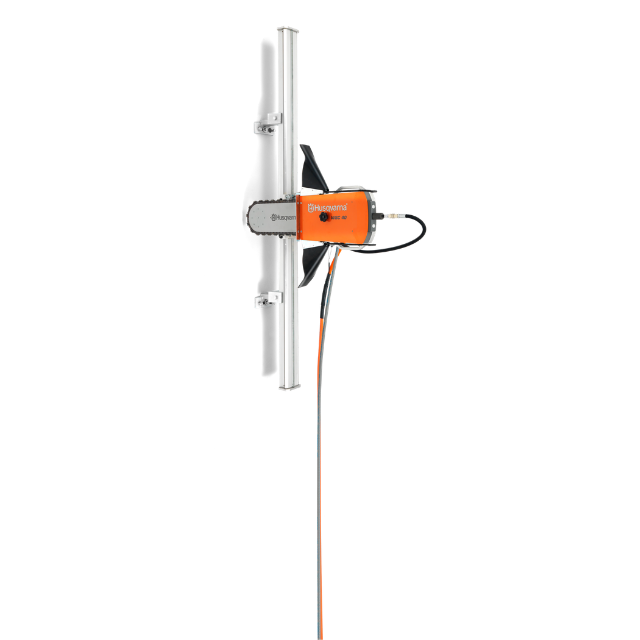

The Husqvarna WSC 40 is a diamond-chain attachment that converts compatible WS 482 HF and WS 440 HF wall saws for precise corner and small-opening cutting up to 400 mm deep. Its flush-cutting, no-overcutting design makes it ideal for door openings, tight spaces and finishing cuts.
Max. Spindle Torque
30 Nm
Max. Cutting Depth
400 mm
Weight
17.5 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
High Precision
Enables you to cut neatly in and around corners. Reaches into really tight spots and small openings, without having to change to a handheld cutter.
Flush Cutting
Handles cuts close to the floor, ceiling or wall.
Easy Chain Tensioning
Enables you to cut neatly in and around corners. Reaches into really tight spots and small openings, without having to change to a handheld cutter.
Power & Compatibility
| Product Type | Wall Saw Chain Attachment |
| Power Source | Driven By Compatible Husqvarna Wall Saw |
| Compatible Wall Saws | Husqvarna WS 482 HF / WS 440 HF |
| Maximum Output Shaft Speed | 3,500 rpm |
| Maximum Spindle Torque | 30 Nm |
| Spindle Starting Torque | 25 Nm |
| Gearbox Speeds | 1 |
Cutting Equipment
| Cutting System | Diamond Chain |
| Maximum Cutting Depth | 400 mm / 16" |
| Guide Bar Length | 320 mm |
| Cutting Method | Wet Cutting |
| Chain Cutting Direction | Bidirectional |
| Compatible Diamond Chains | ELITE-CHAIN™ PRO20 / ELITE-CHAIN™ PRO45 |
Water System
| Minimum Water Flow | 3.5 L/min |
| Maximum Water Pressure | 7 bar |
| Maximum Water Temperature At Minimum Flow | 60°C |
Features
| High-Precision Corner Cutting | Yes |
| Cutting Without Overcutting | Yes |
| Flush Cutting Capability | Yes |
| Mechanical Parallel Movement | Yes |
| Shock Protection | Yes |
| Easy Chain Tensioning | Yes |
| Quick Attachment Installation | Yes |
| Existing Wall Saw Track Compatibility | Yes |
| Rail Repositioning Required | No |
Dimensions
| Product Length | 970 mm / 38.2" |
| Product Width | 160 mm / 6.3" |
| Product Height | 380 mm / 15" |
| Saw Unit Weight | 17.5 kg |
| Complete Product Weight | 27 kg |
Sound & Noise
| Sound Pressure Level At Operator's Ear | 83 dB(A) |
| Sound Power Level, Measured | 105 dB(A) |
| Sound Power Level, Guaranteed | 106 dB(A) |
