RG13-II
Rayco · Stump Grinders
Rayco
RG13-II
By Rayco

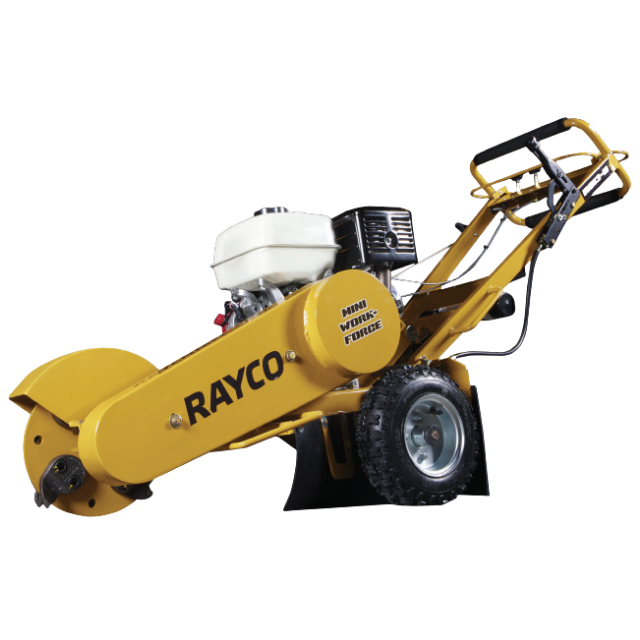

The Rayco RG13 Series II is a compact commercial-grade stump grinder designed for residential properties, restricted-access areas and smaller stump-removal jobs. Its powerful Honda engine, adjustable handlebar and Rayco Super Teeth® cutting system provide dependable grinding performance with straightforward manual operation.
Displacement
389 cm³
Cutting Range
330 mm Below Ground / 560 mm Above Ground
Weight
119 kg
Authorised Rayco Distributor
Parts & Servicing Available
Fast Response
Engine
| Power Source | Petrol |
| Engine Manufacturer | Honda |
| Engine Model | GX390 |
| Engine Type | 4-Stroke, Single-Cylinder OHV |
| Cylinder Displacement | 389 cm³ |
| Engine Power | 13 hp / 9.75 kW |
| Maximum No-Load Speed | 3,600 rpm |
| Maximum Rated Torque | 27.8 Nm At 2,500 rpm |
| Starting System | Recoil |
| Fuel Tank Capacity | 6.5 L |
Cutting System
| Cutting Wheel Diameter | 280 mm / 11" |
| Cutting Wheel Thickness | 9.5 mm / 3/8" |
| Cutting Wheel Bearings | 25.4 mm / 1" Pillow Block Type |
| Cutting Teeth | 8 Rayco Super Teeth® |
| Cutter Wheel Engagement | Centrifugal Clutch |
| Maximum Cutting Depth Below Ground | 330 mm / 13" |
| Maximum Cutting Height Above Ground | 560 mm / 22" |
Drive System
| Ground Drive | Manual Push |
Construction
| Frame Construction | 7-Gauge Steel |
| Finish | Powder-Coated |
| Adjustable Handlebar | Yes |
| Operator Presence Bar | Yes |
| Cyclone Air Cleaner | Yes |
| Operator Controls | Handlebar-Mounted |
Dimensions
| Product Length | 2,026 mm |
| Product Width | 635 mm |
| Product Height | 1,270 mm |
| Weight | 119 kg |
Product Brochure
Rayco RG13-II
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
