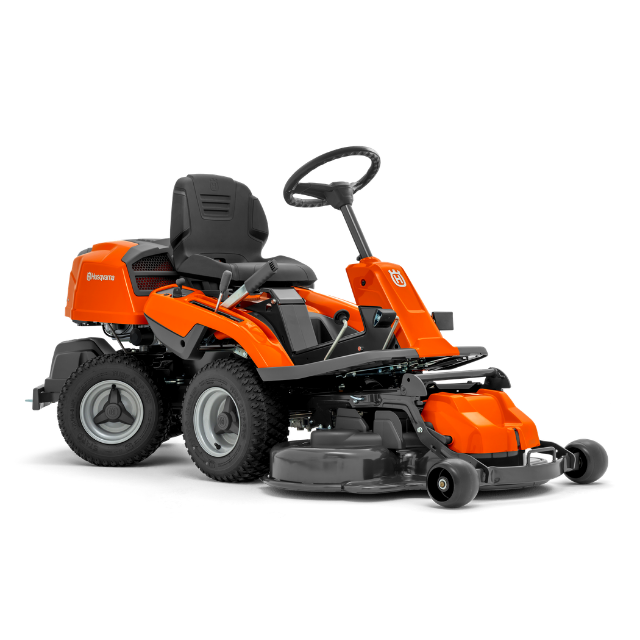

R 214C

R 214C

Efficient Rider with 94 cm Combi cutting deck, offering first-class BioClip® and rear ejection cutting. Suitable for home- and landowners who require high efficiency, ease of use, superior manoeuvrability and a truly enjoyable ride. The articulated steering system and front-mounted cutting deck means intuitive operation, excellent mowing accessibility and great overview of your working area.

Battery voltage Weight
12 V 228 kg

Features

  • BioClip┬« (mulching) mode for frequently cut areas
  • Accessories for versatile year-round usage
  • Service position for easy deck maintenance
  • Turn key start
  • Combi cutting deck
  • Automatic blade engagement
  • Pedal-operated hydrostatic transmission
  • Pivoting rear axle for maximum traction
  • Height adjustable steering wheel
  • Easy-access storage compartment
  • Easy-access cutting height lever
  • Hour meter
  • Min. clearance circle by articulated steering
  • Comfortable driver’s position
  • Easy-access controls for user comfort
  • Engine behind driver for better overview
  • Front-mounted deck for optimum accessibility
Service position

Service position on the cutting deck facilitates cleaning and service.

Versatile usage

A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round.

BioClip®

BioClip® (mulching) provides excellent cutting results on frequently cut areas. The grass is cut into fine pieces that quickly decompose and return to the lawn as natural fertiliser.

Turn key start

Easy to get operating under any wetather conditions. No choking needed, just turn the key and go.

Specifications

Battery
Battery capacity 24 Ah
Battery manufacturer Global
Battery pack weight 7.2 kg
Battery type Lead-Acid
Battery voltage 12 V
Quantity of batteries/battery pack 1 pcs
Capacity
Power output 8.4 kW
Dimensions
Article gross weight 302000 g
Article net weight 227500 g
Base machine, height 107 cm
Base machine, length 192.2 cm
Base machine, width 88.3 cm
Cutting height steps 10
Ground clearance 120 mm
Gross weight towed 110 kg
Tyre dimensions, front 170/60-8
Tyre dimensions, rear 170/60-8
Weight 228 kg
Wheelbase 88.7 cm
Engine
Cylinder displacement 413 cm┬│
Cylinders 1
Electric start Yes
Engine cooling Air
Engine lubrication type Pressure
Engine name HS 413AE
Motor/engine manufacturer Husqvarna
Motor/engine model HS 413AE
Spark plug HQT-9
Fuel tank volume 12 l
Fuel tank volume 3.2 gal (US)
Equipment
12V outlet No
Air filter type Cartridge with pre filter
Blade engagement Automatic
Blades 3 pcs
Cup holder Yes
Cutting deck type Combi
Cutting height adjustment Lever, while seated
Drive method Dual pedal-operation
Drive system Rear wheel drive
Foldable seat Yes
Hour meter type Digital
Powder-coated cutting deck Yes
Seat manufacturer SEAT
Seat suspension Yes
Service position Yes
Technical Platform R 200-series
Wheelbase 88.7 cm
Lubricants
Engine lubrication type Pressure
Fuel consumption 395 g/kWh
Fuel tank volume 12 l
Fuel consumption 395 g/kWh
Oil capacity 1.2 l
Oil filter Yes
Oil type SAE10W30
Power/fuel type Gasoline
Sound and Noise
Sound power level, guaranteed (LWA) 99 dB(A)
Sound power level, measured 98 dB(A)
Sound pressure level at operators ear 84 dB(A)
Vibrations
Vibration level seat 0.6 m/s┬▓
Vibration level steering wheel 2.1 m/s┬▓
