PP 70
Husqvarna Construction · Power Packs
Husqvarna Construction

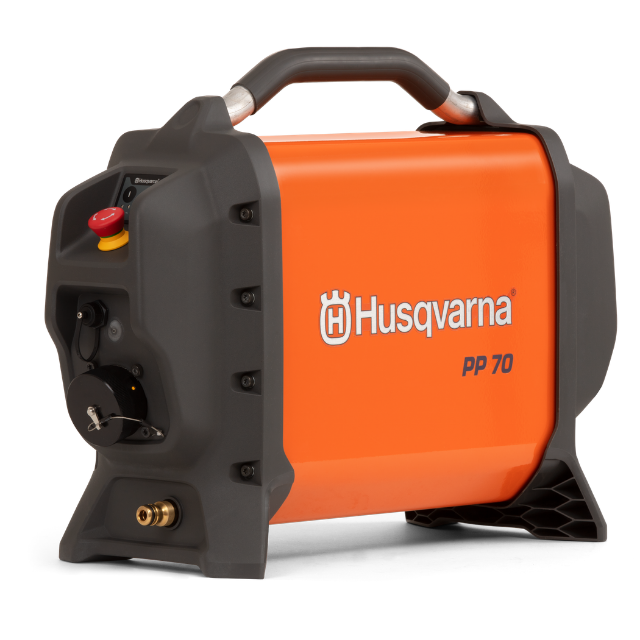

PP 70
By Husqvarna Construction
The Husqvarna PP 70 is a compact high-frequency electric power pack designed to operate compatible Husqvarna PRIME™ cutting and drilling equipment. Its 6.5 kW output, automatic setup and compatibility with both single-phase and three-phase supplies provide flexible professional operation.
Power
6.5 kW
Power Supply
120-240 V (1P) / 200-480 V (3P)
Weight
18 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Sturdy and Durable
The machine body is made of aluminium and ensures tough handling. Steady ground support ensures minimum contact to slurry.
Ergonomic Design
Sturdy and protected interface for efficient control and service of the unit.
Flexible Power Setup
Operates with both 3- and 1-phase power.
Water Cooled
Ensures perfect working temperature over time.
Motor & Power Supply
| Power Source | Corded Electric |
| Power Pack Type | High-Frequency Electric Power Pack |
| Maximum Output Power | 6.5 kW |
| Rated Current, Single-Phase | 15 A |
| Rated Current, Three-Phase | 15 A |
| Single-Phase Input Voltage | 120–240 V |
| Three-Phase Input Voltage | 200–480 V |
| Frequency | 50–60 Hz |
| Single-Phase Power Supply | L + N + PE |
| Three-Phase Power Supply | L1 + L2 + L3 + PE |
Power Performance
| Full-Power Three-Phase Voltage | 380 / 416 / 440 / 480 V |
| Reduced-Power Three-Phase Voltage | 208 / 220 / 240 V |
| Reduced-Power Single-Phase Voltage | 220–240 V |
| Minimum Recommended Three-Phase Generator Output | 10 kVA |
| Minimum Recommended Single-Phase Generator Output | 5 kVA |
Cooling System
| Cooling System | Water-Cooled |
| Maximum Water Pressure | 7 bar |
| Recommended Maximum Water Temperature | Below 25°C |
Compatibility
| Compatible Equipment Range | Husqvarna PRIME™ High-Frequency Equipment |
| Compatible Power Cutters | Husqvarna K 7000 / K 7000 Ring / K 7000 Chain |
| Compatible Core Drill Motor | Husqvarna DM 700 |
Control & Connectivity
| User Interface | Digital Menu |
| Automatic Connected-Tool Setup | Yes |
| Embedded Connectivity | Yes |
| Connectivity Type | Bluetooth® Low Energy |
| Radio Frequency Band | 2.402–2.480 GHz |
| Maximum Radio-Frequency Power | 4 dBm / 2.5 mW |
| Husqvarna Fleet Services™ Compatibility | Yes |
Features
| Single-Phase And Three-Phase Compatibility | Yes |
| Automatic Setup | Yes |
| Sturdy And Durable Construction | Yes |
| Compact Design | Yes |
| Integrated Carrying Handles | Yes |
| Machine Stop Button | Yes |
| Residual-Current Device | Yes |
Dimensions
| Product Length | 570 mm |
| Product Width | 183 mm |
| Product Height | 410 mm |
| Weight | 18 kg |
Product Brochure
Husqvarna Construction PP 70
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
