PP 518
By Husqvarna Construction

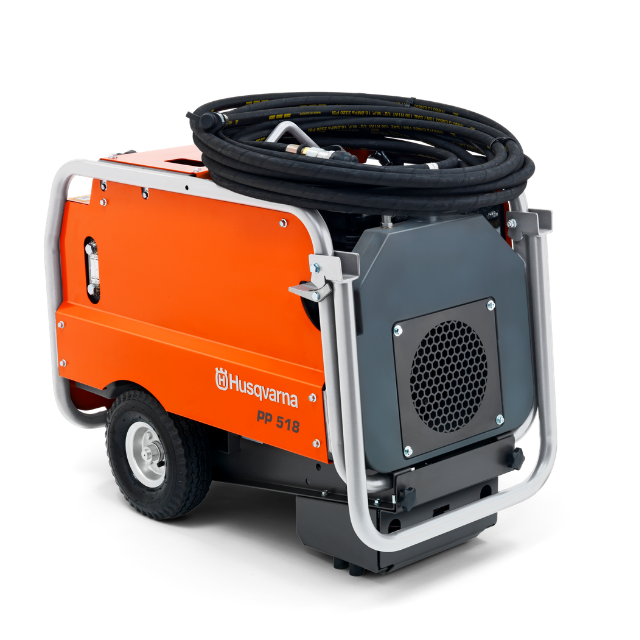

The Husqvarna PP 518 is a petrol-powered hydraulic power pack designed to operate compatible core drills and power cutters where an electrical supply is unavailable. Its adjustable 40 L/min hydraulic flow, automatic power-on-demand system and heavy-duty wheeled design provide reliable performance with convenient jobsite transport.
Power
10.42 kW
Max. Hydraulic Flow
Up to 40 L/min
Weight
127 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Smart Fuel-saving System
Fuel-saving automatic power-on-demand, adjustable for different equipment and hose lengths. Can be switched off when constant power is desired.
Easy to Store and Transport
Compact size, large pneumatic tired and convenient folding handle.
Easy Doorway Passage
Hydraulic hose attachment on front panel gives easy doorway passage.
Maximum Machine Life and Power
Hydraulic oil is cooled by a large, 15-litre oil reservoir and 23 cm fan to provide maximum machine life and power.
Engine
| Power Source | Petrol |
| Engine Manufacturer | Briggs & Stratton |
| Engine Type | Vanguard V-Twin |
| Engine Power | 10.42 kW / 14 hp |
| Engine Oil Capacity | 1.4 L |
| Fuel Tank Capacity | 7.9 L |
| Starting System | Electric |
Hydraulic System
| Tool Hydraulic System | Open-Centre Valve |
| Power Unit Hydraulic System | Closed Loop |
| Pump Type | Variable-Displacement Piston Pump |
| Selectable Hydraulic Oil Flow | 20 / 30 / 40 L/min |
| Maximum Hydraulic Oil Flow | 40 L/min |
| Nominal Hydraulic Pressure | 110 bar |
| Excess Flow Valve Setting | 148 bar |
| Hydraulic Oil Type | ISO 46 |
| Hydraulic Oil Reservoir | 15 L |
| Hydraulic Oil Cooling | Air-Cooled With 23 cm Fan |
Compatibility
| Compatible Core Drill Motor | Husqvarna DM 406 H |
| Compatible Power Cutters | Husqvarna K 2500 / K 3600 Mk II |
| Compatible Equipment Type | Open-Centre Hydraulic Equipment |
Features
| Automatic Power-On-Demand | Yes |
| Adjustable Fuel-Saving System | Yes |
| Precise Hydraulic Flow Control | Yes |
| Adjustable Folding Handle | Yes |
| Large Pneumatic Tyres | Yes |
| Front-Mounted Hydraulic Hose Connections | Yes |
| Heavy-Duty Single-Axle Trolley | Yes |
Hydraulic Hose
| Standard Hose Diameter | 1/2" |
| Standard Hose Length | 7.5 m |
| Dry Hose Weight | 8.5 kg |
| Hose Weight With Oil | 10 kg |
Dimensions
| Length With Handle Folded | 860 mm |
| Length With Handle Extended | 1,300 mm |
| Width | 550 mm |
| Height | 740 mm |
| Height With Hose And Tool Holder Extended | 920 mm |
| Dry Weight Without Hoses | 127 kg |
| Weight With Oil, Without Petrol | 135 kg |
Electrical System
| Battery Type | U1, 12 V |
| Cold Cranking Rating | 230 A |
| Fuse | 10 A |
Sound & Noise
| Sound Power Level, Measured | 100 dB(A) |
| Sound Power Level, Guaranteed | 101 dB(A) |
| Sound Pressure Level At Operator's Ear | 92 dB(A) |
