PP 492
Husqvarna Construction · Power Packs
Husqvarna Construction
PP 492
By Husqvarna Construction
*Used with Husqvarna WS 482 HF Wall Saw

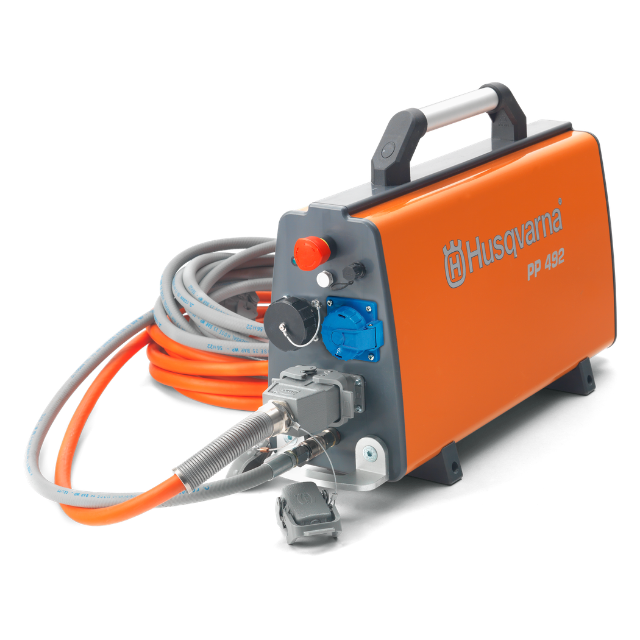

The Husqvarna PP 492 is a powerful high-frequency electric power pack designed to operate compatible PRIME™ equipment and WS 400 Series wall saws. Its 20 kW output, adaptive software regulation and wireless remote control provide efficient and precise performance across demanding cutting and drilling applications.
Power
20 kW
Power Supply
380-480 V, 3-Phase, 32 A
Weight
25.8 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Flexible and Efficient
Thanks to that multiple products can use the same power pack, you will increase your efficiency. You will need less machines at the job site and it will be faster to set up all machines on one power pack.
A Powerful High Frequency Power Pack
A powerful high frequency power pack providing fast and accurate adjustment for each operating condition.
Power Pack Unit Separated From The Cutting Equipment
Power pack unit separated from the cutting equipment - less exposure to dirt and vibrations.
Motor & Power Supply
| Power Source | Corded Electric |
| Power Pack Type | High-Frequency Electric Power Pack |
| Output Power | 20 kW |
| Maximum Apparent Output | 20 kVA |
| Input Voltage | 380–480 V |
| Frequency | 50–60 Hz |
| Rated Current | 32 A |
| Supported Fuse Ratings | 16 / 25 / 32 A |
| Power Supply | 3-Phase + Protective Earth + Neutral |
| Power Connector | 5-Pin |
| Single-Phase Outlet | 230 V |
Electrical Output
| Output Voltage | 340 V |
| Output Frequency | 0–500 Hz |
| Secondary Output Voltage | 24 V |
| Secondary Output Frequency | 0–500 Hz |
Compatibility
| Compatible Equipment Range | Husqvarna PRIME™ Equipment And WS 400 Series Wall Saws |
| PRIME™ Connector | Yes |
| Wall Saw Connector | Yes |
Control System
| Control Type | Remote Control |
| Signal Transmission | Wireless / Cable |
| Remote Control Display | 3.5" Digital Colour Display |
| Radio Frequency Band | 2.400–2.480 GHz |
| Maximum Radio Frequency Power | 4 dBm / 2.5 mW |
| Adjustable Fuse Setting | 16 / 25 / 32 A |
| Adjustable Water Valve | Yes |
| Operating Data Display | Yes |
Water Cooling
| Cooling System | Water-Cooled |
| Electric Water Valve | Yes |
| Minimum Recommended Water Flow | 3.5 L/min |
| Maximum Coolant Temperature At 3.5 L/min | 25°C |
| Maximum Water Pressure | 7 bar |
Features
| Adaptive Software Regulation | Yes |
| Automatic Connected-Tool Recognition | Yes |
| Separate Power Pack And Cutting Equipment | Yes |
| Multiple Equipment Compatibility | Yes |
| Machine Stop Button | Yes |
| Residual-Current Device | Yes |
| Integrated Carrying Handle | Yes |
Dimensions
| Product Length | 680 mm |
| Product Width | 205 mm |
| Product Height | 422 mm |
| Weight | 25.8 kg |
The following accessories are compatible with the PP 492. Click any item to view its product page.
Product Brochure
Husqvarna Construction PP 492
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
