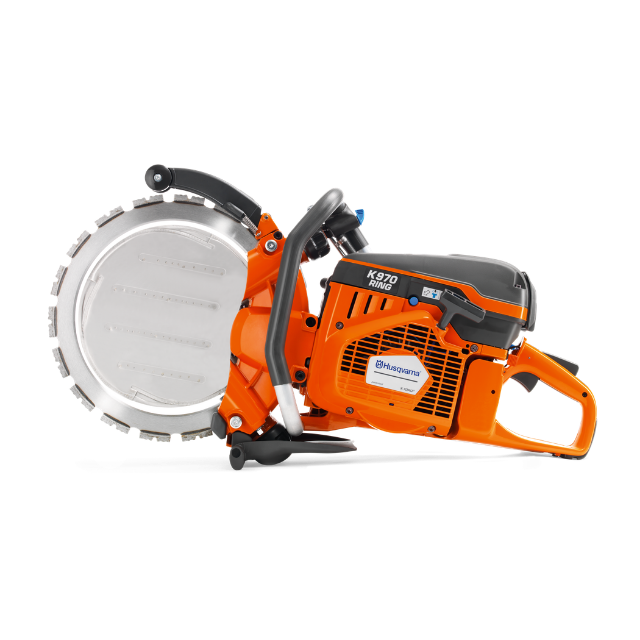

K 970 Ring
Husqvarna Construction · Petrol
Husqvarna Construction
K 970 Ring
By Husqvarna Construction
When you need to make deep cuts fast our K 970 Ring is the answer. It has an exceptionally cutting depth of 270 mm, twice the amount of a traditional power cutter. It has a high cutting capacity, can make deep cuts from one side and is the quickest method for small and medium-sized cuts.
Displacement
93.6 cm³
Max. Cutting Depth
270 mm / 325 mm
Weight
13.8 kg / 14.2 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Long Service Intervals
A strong Poly-V belt combined with our maintenance-free start DuraStarter™ and efficient filter-system Active Air Filtration™ ensures long service intervals.
Maintenance-free Air Filter
The only time the filter needs to be checked and changed is if you experience lack of power.
High Power With Less Fuel
Our built-in automatic filter compensation SmartCarb™ maintains high power and lowers fuel consumption.
SmartCarb™
Our built-in automatic filter compensation maintains high power during the air filter life time.
Engine
| Power Source | Petrol |
| Engine Type | 2-Stroke Engine |
| Cylinder Displacement | 93.6 cm³ |
| Output Power | 4.8 kW / 6.5 hp |
| Maximum Power Speed | 9,000 rpm |
| Idle Speed | 2,700 rpm |
| Maximum No-Load Speed | 9,300 rpm |
| Cylinder Bore | 56 mm |
| Stroke Length | 38 mm |
| Number Of Cylinders | 1 |
| Fuel Tank Capacity | 1 L |
| Spark Plug | NGK BPMR 7A |
| Electrode Gap | 0.5 mm |
Cutting Equipment
| Cutting System | Ring Blade |
| Maximum Blade Diameter, 14" Variant | 370 mm / 14" |
| Maximum Blade Diameter, 17" Variant | 430 mm / 17" |
| Maximum Cutting Depth, 14" Variant | 270 mm |
| Maximum Cutting Depth, 17" Variant | 325 mm |
| Maximum Blade Thickness | 5.6 mm |
| Maximum Peripheral Speed, 14" Variant | 55 m/s |
| Maximum Peripheral Speed, 17" Variant | 47 m/s |
| Cutting Method | Wet Cutting |
Water System
| Blade Water Cooling | Yes |
| Recommended Water Pressure | 1.5–10 bar |
| Recommended Water Flow | 4 L/min |
| Progressive Water Valve | Yes |
| Adjustable Water Flow | Yes |
Features
| Deep Cutting Capability | Yes |
| One-Sided Deep Cutting | Yes |
| Anti-Vibration System | Yes |
| Easy-Start System | Yes |
| Low Water Consumption | Yes |
| Low Slurry Production | Yes |
| Long Service Intervals | Yes |
| Pipe Cutting Clamp Compatibility | Yes |
Dimensions
| Product Length, 14" Variant | 784.6 mm |
| Product Width, 14" Variant | 224.2 mm |
| Product Height, 14" Variant | 430.7 mm |
| Weight Without Fuel And Cutting Blade, 14" Variant | 13.8 kg |
| Product Length, 17" Variant | 814.6 mm |
| Product Width, 17" Variant | 224.2 mm |
| Product Height, 17" Variant | 494.5 mm |
| Weight Without Fuel And Cutting Blade, 17" Variant | 14.2 kg |
Sound & Noise
| Sound Power Level, Measured | 114 dB(A) |
| Sound Power Level, Guaranteed | 115 dB(A) |
| Sound Pressure Level At Operator's Ear | 104 dB(A) |
Vibration
| Front Handle Vibration Level, 14" Variant | 2.7 m/s² |
| Rear Handle Vibration Level, 14" Variant | 3.4 m/s² |
| Front Handle Vibration Level, 17" Variant | 3.5 m/s² |
| Rear Handle Vibration Level, 17" Variant | 3.4 m/s² |
Emissions
| Exhaust Emissions | 736 g/kWh |
Product Brochure
Husqvarna Construction K 970 Ring
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
