DXR 275
Husqvarna Construction · Demolition Robots
Husqvarna Construction
DXR 275
By Husqvarna Construction
· SKU: UHCN DXR275 970517401

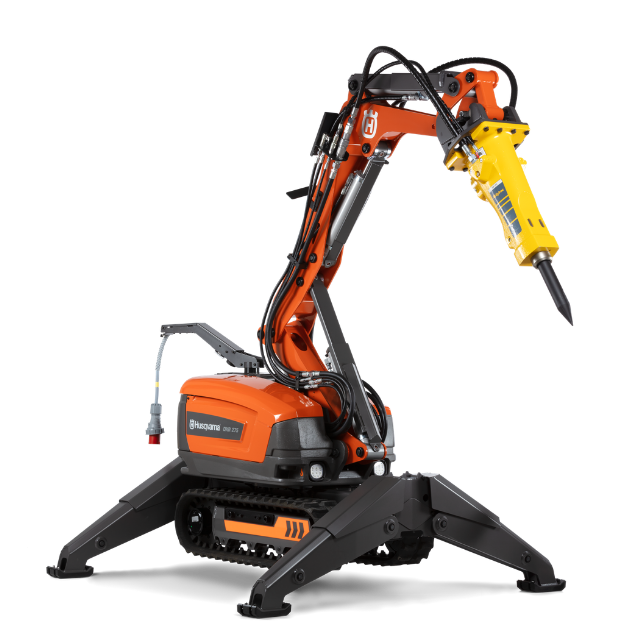

The Husqvarna DXR 275 is a compact remote-controlled demolition robot designed for demanding demolition and dismantling work in confined or hazardous environments. Its 24 kW power, 360° rotating arm and individually controlled outriggers deliver precise tool positioning, excellent stability and reliable performance.
Power
24 kW
Max. Upward Reach
4.8 m
Weight
1,850 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Superb Power-To-Weight Ratio
Compact and powerful in relation to the low weight. Its large footprint enables a high workload.
Compact Design and Low Weight
Gives good access to confined spaces and high manoeuvrability.
Precise Positioning
The set-up of the arm system combined with the software gives smooth and precise positioning of the tool.
Easy Transportation
The casted baseplate has integrated lift bails.
Power & Electrical System
| Power Source | Electric |
| Rated Input Power | 24 kW |
Hydraulic System
| Maximum Hydraulic Oil Flow | 75 L/min |
| Hydraulic Feature Package P1 | Factory Installed |
| Extra Hydraulic Function Control | Yes |
| Automatic Breaker Greasing | Yes |
Operating Performance
| Maximum Upward Reach | 4.8 m |
| Arm Rotation Angle | 360° |
| Maximum Remote-Control Operating Range | 300 m |
| Individually Controlled Outriggers | Yes |
Dimensions & Weight
| Machine Width | 770 mm |
| Standard Configuration Weight | 1,850 kg |
| Weight With Extended Hydraulic Function And Cylinder Protection | 1,870 kg |
| Weight With Enhanced Cooling | 1,875 kg |
| Weight With Heat Protection | 1,995 kg |
Remote Control
| Control Type | Wireless Remote Control |
| Maximum Operating Range | 300 m |
| Live Current Monitoring | Yes |
| Live Voltage Monitoring | Yes |
| Live Temperature Monitoring | Yes |
| Active Fault Display | Yes |
| Operating-Time Display | Yes |
| Adjustable Display For Bright And Dark Conditions | Yes |
| Ergonomic Shoulder Hook | Yes |
| Waist Belt | Included |
Features
| Precise Tool Positioning | Yes |
| 360° Rotatable Arm | Yes |
| Individually Controlled Outriggers | Yes |
| Integrated LED Work Lights | Yes |
| Integrated Lifting Points | Yes |
| One-Piece Cast Baseplate | Yes |
| Automatic Breaker Greasing | Yes |
| Adjustable Operating Parameters | Yes |
| Predefined Tool Settings | Yes |
| Removable Service Covers | Yes |
Factory Options
| Extended Hydraulic Function And Cylinder Protection | Available |
| Enhanced Cooling | Available |
| Heat Protection | Available |
Sound & Noise
| Sound Power Level Without Tool, Measured | 93 dB(A) |
| Sound Power Level Without Tool, Guaranteed | 95 dB(A) |
