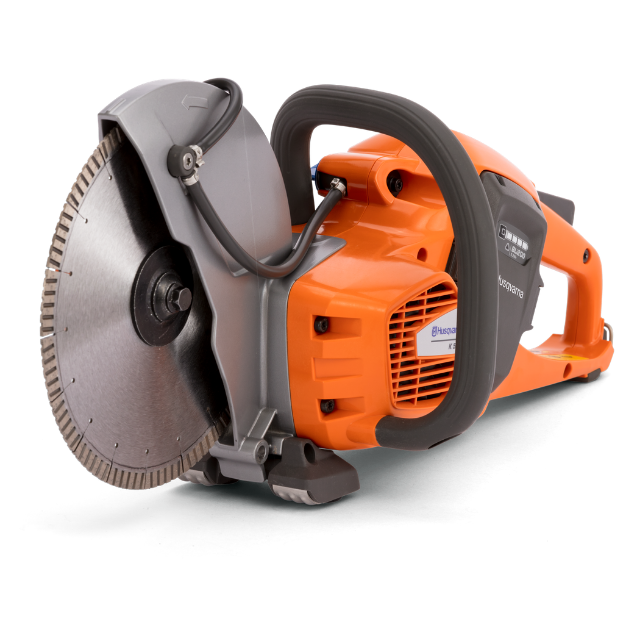

K 535i
Husqvarna Construction · Battery
Husqvarna Construction
K 535i
By Husqvarna Construction
The Husqvarna K 535i is a lightweight battery power cutter with low vibrations and user-friendly ergonomics. The excellent power-to-weight ratio makes it a versatile addition for lighter land or hardscaping jobs and perfect for quick and efficient cuts. Suitable for concrete garden plates, granite, roof and floor tiles.
Max. Cutting Depth
76 mm
Weight
3.5 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Lightweight Maneuverability
The slim design and low weight makes it easy to lift, control and manoeuvre during operations, which combines with exceptionally low vibrations makes this an ideal machine for lighter concrete jobs.
Perfect Balance
The centered placement of the blade provides increased stability and control.
Intuitive Keypad
For perfect control, the intuitive keypad is designed for quick commands and features a SavETM function for maximum runtime.
Electric Blade Brake
For increased safety and ease of use, the blade will stop its rotation - from full throttle to zero in 3.1 seconds.
Battery & Motor
| Power Source | Battery |
| Battery ECO System | Husqvarna BLi-X 36 V |
| Battery Voltage | 36 V |
| Battery Type | Lithium-Ion |
| Motor Type | Brushless |
| Rated Speed | 5,940 rpm |
| Approved Batteries | BLi200 / BLi300 |
| Battery And Charger | Not Included |
Cutting Equipment
| Maximum Blade Diameter | 230 mm / 9" |
| Maximum Cutting Depth | 76 mm / 3" |
| Arbor Diameter | 22.23 mm |
| Maximum Abrasive Blade Thickness | 3 mm |
| Maximum Diamond Blade Thickness | 1.8 mm |
| Maximum Peripheral Speed | 70 m/s |
| Cutting Capability | Wet And Dry |
Water System
| Water Cooling Of Blade | Yes |
| Water Connector | Gardena Type |
| Recommended Water Pressure | 0.5–6 bar |
| Maximum Water Pressure | 6 bar |
Features
| savE™ Mode | Yes |
| Intuitive Keypad | Yes |
| Electric Blade Brake | Yes |
| Blade Stopping Time | Approximately 3.1 Seconds |
| Smart Battery Placement | Yes |
| Centrally Positioned Blade | Yes |
| Ergonomic Handles | Yes |
| Integrated Safety Loop | Yes |
| Low-Vibration Design | Yes |
Dimensions
| Product Length | 560 mm |
| Product Width | 220 mm |
| Product Height | 310 mm |
| Weight Excluding Battery And Cutting Equipment | 3.5 kg |
Sound & Noise
| Sound Pressure Level At Operator's Ear | 100.5 dB(A) |
| Sound Power Level, Guaranteed | 111.5 dB(A) |
Vibration
| Front Handle Vibration Level With BLi200 | 1.9 m/s² |
| Rear Handle Vibration Level With BLi200 | 2.3 m/s² |
| Front Handle Vibration Level With BLi300 | 2.1 m/s² |
| Rear Handle Vibration Level With BLi300 | 2.5 m/s² |
Product Brochure
Husqvarna Construction K 535i
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
