K 40
Husqvarna Construction · Hydraulics
Husqvarna Construction

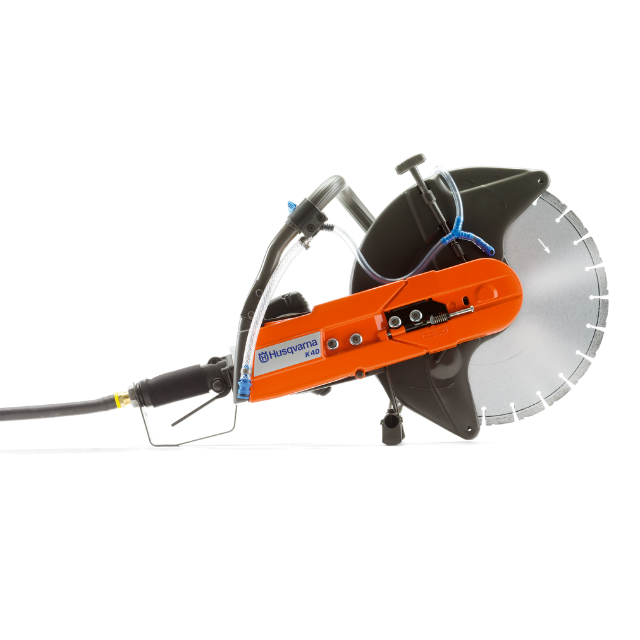

K 40
By Husqvarna Construction
Powerful and reliable air-powered industrial cutter, perfect for use indoors or outdoors with access to compressed air. Featuring a long, slim line body, with good weight distribution and fine balance laterally and between the handles.
Power
3.2 kW
Max. Cutting Depth
125 mm
Weight
9.9 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Perfect For Indoor Use and at Places With Low Air-change Rate
Air-powered cutters are perfect for indoor and outdoor use, in places where the air-change rate is low, such as in pipeline trenches.
Ergonomic and Easy Cutting
Efficient cutting with less strain on your body, thanks to its low weight, ergonomic handle, and low vibrations.
Smooth Blade Stop
Reduces the stop time of the blade when the machine is switched off, which enables you to quickly move on to the next job.
Pneumatic Motor Lubrication
An oil mist lubricates the motor.
Power & Air Supply
| Power Source | Compressed Air |
| Pneumatic Motor Power | 3.2 kW / 4.3 hp |
| Air Consumption | 2.8–3.5 m³/min |
| Maximum Air Pressure | 7 bar |
| Recommended Air Hose Diameter | 19 mm / 3/4" |
| Air Intake Connection | 3/4" NPT Female |
| Motor Lubricant | Anti-Freeze Pneumatic Tool Oil |
Cutting Equipment
| Maximum Blade Diameter | 350 mm / 14" |
| Maximum Cutting Depth | 125 mm |
| Arbor Diameter | 25.4 mm / 1" |
| Maximum Output Shaft Speed | 5,400 rpm |
| Maximum Peripheral Speed | 100 m/s |
| Drive System | SPZ V-Belt |
Water System
| Water Supply Connection | Integrated With Filter |
| Water Flow Control | Adjustable |
| Wet Cutting Capability | Yes |
Features
| Pneumatic Motor Lubrication | Yes |
| Smooth Blade Stop | Yes |
| Ergonomic Handle Design | Yes |
| Low-Vibration Design | Yes |
| Suitable For Indoor Operation | Yes |
| Suitable For Low Air-Change Environments | Yes |
Dimensions
| Weight Without Cutting Blade | 9.9 kg |
Sound & Noise
| Sound Power Level, Measured | 107 dB(A) |
| Sound Power Level, Guaranteed | 107 dB(A) |
| Sound Pressure Level At Operator's Ear | 92 dB(A) |
Vibration
| Front Handle Vibration Level | 9.5 m/s² |
| Rear Handle Vibration Level | 5.2 m/s² |
Product Brochure
Husqvarna Construction K 40
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
