K 3600 Mk II
Husqvarna Construction · Hydraulics
Husqvarna Construction
K 3600 Mk II
By Husqvarna Construction

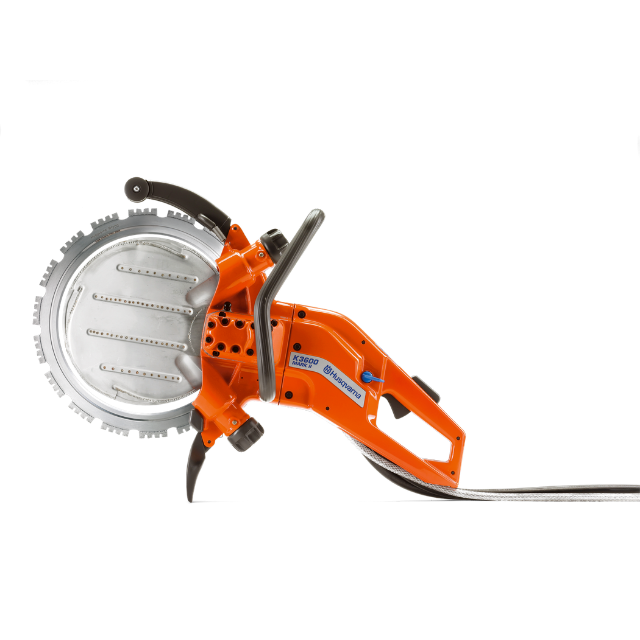

The Husqvarna K 3600 Mk II is a hydraulic ring cutter designed for deep cutting in concrete, masonry, pipes, walls and floors. Its 270 mm cutting depth, lightweight 8.3 kg body and fume-free hydraulic operation make it especially suitable for demanding indoor and confined-space cutting work.
Power
4.3 kW
Max. Cutting Depth
270 mm
Weight
8.3 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Deep Cutting
Thanks to the peripheral drive you can cut far deeper than with a traditional power cutter. The cutting depth of 270 mm is sufficient to cut through a normal wall from one side only.
No Fumes and Low Noise Level
With no fumes and low noise levels, hydraulic cutters are ideal for both indoor and outdoor jobs.
Light With High Power
Hydraulics is an excellent way to transfer high power without the cutter becoming heavy.
Adjustable Front Handle
Facilitates manoeuvrable cutting.
Power & Hydraulics
| Power Source | Hydraulic |
| Engine Power | 4.3 kW |
| Hydraulic Motor | Geared Motor, Open Centre Valve |
| Hydraulic Oil Flow | 40 L/min |
| Recommended Hydraulic Oil Flow | 35–42 L/min |
| Maximum Hydraulic Pressure | 150 bar |
| Hydraulic Couplings | 1/2" FF According To HTMA Regulations |
Cutting Equipment
| Maximum Cutting Depth | 270 mm |
| Maximum Blade Diameter | 370 mm |
| Blade Diameter | 14" |
| Maximum Blade Thickness | 5.6 mm |
| Maximum Peripheral Speed | 55 m/s |
| Maximum Motor Speed | 17,000 rpm |
Water System
| Wet Cutting Kit | Yes |
| Water Adjustment | Yes |
| Water Consumption | 4 L/min |
Features
| Deep Cutting Capability | Yes |
| No Exhaust Fumes At Cutter | Yes |
| Low Noise Operation | Yes |
| Lightweight High-Power Design | Yes |
| Adjustable Front Handle | Yes |
| Suitable For Indoor Cutting | Yes |
| Suitable For Pipe Cutting | Yes |
| Suitable For Floors And Walls | Yes |
| Suitable For Blocks, Curbstones And Pavers | Yes |
Dimensions
| Product Length | 727 mm |
| Product Width | 175 mm |
| Product Height | 410 mm |
| Weight | 8.3 kg |
| Ring Blade Weight | 0.8 kg |
Sound & Noise
| Sound Power Level, Measured | 110 dB(A) |
| Sound Power Level, Guaranteed | 111 dB(A) |
| Sound Pressure Level At Operator's Ear | 99 dB(A) |
Vibration
| Front Handle Vibration Level | 4.3 m/s² |
| Rear Handle Vibration Level | 6 m/s² |
