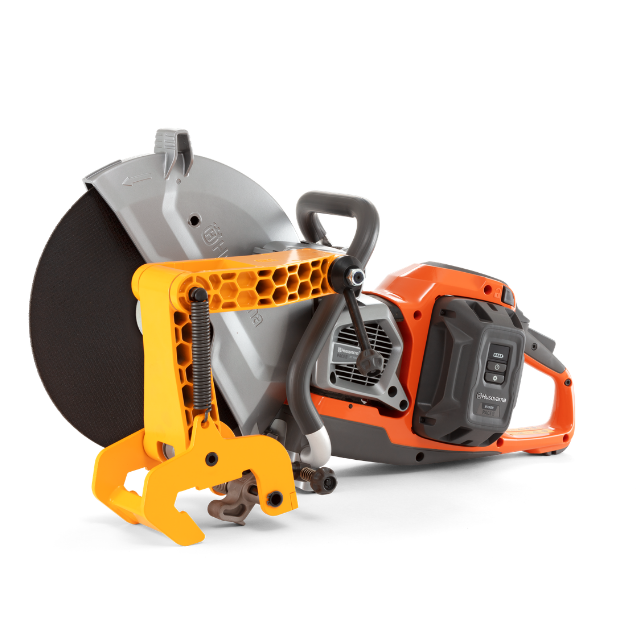

K 1 PACE Rail
By Husqvarna Construction
The K 1 PACE Rail is a high-performance, battery-powered rail cutter designed for precision, speed, and safety, featuring a powerful motor, X-Halt™ brake function, and excellent power-to-weight balance. Engineered for use on railways, tram tracks, and metro systems, it delivers fast, straight cuts with quick and versatile mounting options.
Max. Cutting Depth
133 mm
Weight
8.6 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
High Performance
Powerful and efficient, Husqvarna-designed, brushless motor that delivers high and consistent torque.
Perfect Right-Angle Cuts
Cutter arm designed for a fast and firm fit to the rail. A two clamp switch provides precise right-angle cuts in all positions and a folding guide to mark the exact cutting position.
Battery Convenience
The 94V PACE system provides outstanding battery capacity and runtime. The single battery system is also compatible with other PACE machines.
Ease of Use
Exceptionally low vibrations, easy maintenance with no air filters required and built-in connectivity with Husqvarna Fleet Services™.
Battery & Motor
| Power Source | Battery |
| Battery ECO System | Husqvarna PACE 94 V |
| Voltage DC Maximum / Nominal | 109.2 V / 93.6 V |
| Motor Type | Brushless |
| Battery And Charger | Not Included |
| Recommended Battery For Rail Operations | B750X PACE |
Cutting Equipment
| Maximum Cutting Depth | 133 mm / 5.23" |
| Maximum Blade Diameter | 356 mm / 14" |
| Arbor Diameter | 25.4 mm / 1" |
| Maximum Blade Thickness, Abrasive Blades | 4 mm / 0.16" |
| Maximum Blade Thickness, Diamond Blades | 2.8 mm / 0.11" |
| Blade Shaft Speed, No Load | 3,800 rpm |
| Minimum Flange Washer Diameter, Abrasive Blade | 90 mm / 3.5" |
| Maximum Peripheral Speed | 59 m/s |
| Coolant | Wet / Dry |
| Rail Type | Vignole Rails |
Rail Attachment
| Rail Attachment | RA 11 |
| Rail Attachment Weight | 5.8 kg |
| Clamp Switch | Yes |
| Double Attachment Mountings | Yes |
| Right-Angle Cutting | Yes |
| Quick Rail Mounting | Yes |
Features
| X-Halt™ Blade Brake | Yes |
| X-Boost | Yes |
| Built-In Connectivity | Yes |
| Husqvarna Fleet Services™ | Yes |
| PACE Battery System Compatibility | Yes |
| Low Direct Emissions During Use | Yes |
| Water Resistance Rating | IPX4 |
Dimensions
| Head Width, Maximum | 85 mm |
| Product Length | 656 mm |
| Product Width | 233 mm |
| Product Height | 423 mm |
| Weight | 8.6 kg |
Sound & Noise
| Sound Pressure Level At Operator's Ear | 101 dB(A) |
| Sound Power Level, Guaranteed | 112 dB(A) |
Vibration
| Front Handle Vibration Level With B750X | 1.6 m/s² |
| Rear Handle Vibration Level With B750X | 0.8 m/s² |
| Front Handle Vibration Level With B380X | 3.1 m/s² |
| Rear Handle Vibration Level With B380X | 1.4 m/s² |
