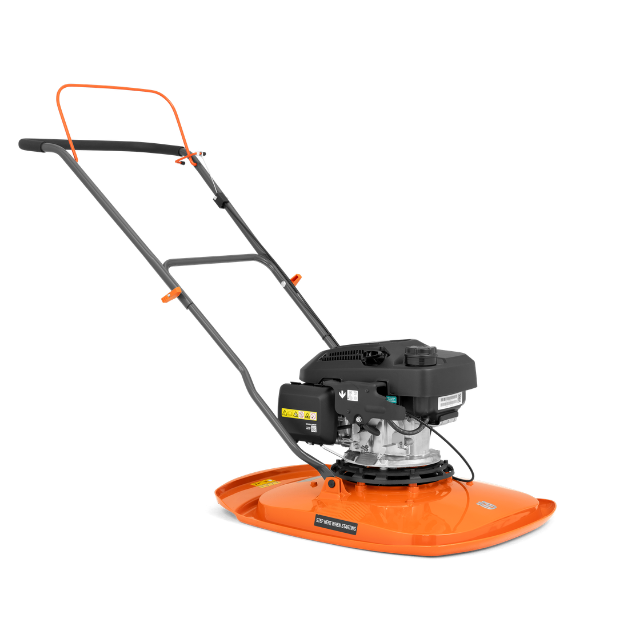

GX 560

GX 560

Husqvarna GX 560 provides all the benefits of air cushion mowing with the additional benefit of petrol power freedom. So easy and manoeuvrable, the GX 560 makes difficult outlying areas more accessible. Designed for large-scale domestic and semi- professional use the GX 560 features a powerful, high quality engine for use on slopes of up to 45°.

Cylinder Displacement Weight
163 cm³ 18.2 kg


  • Cuts easily in any direction through air cushion.
  • Easy to move around in any directions.
  • Cuts continuosly on slopes up to 45°.
  • Transport wheels as an accessory.
Cuts on slopes up to 45°

Cuts continuosly on slopes up to 45° due to the oil throw engine lubrication system.


Easy to move around obstacles in the landscape such as flower beds, trees and up to edges.

Air cushion

Floats on a cushion of air and cuts easily in any direction.

Transport wheels

Transport wheels for improved manoeuvrability in use and easier transportation – available as an accessory.


Cutting Deck
Cutting height adjustment Spacers
Cutting height steps 3
Cutting width 50.5 cm
Weight 18.2 kg
Drive system
Drive system Push
Cylinder displacement 163 cm³
Engine cooling Air
Engine lubrication type Splash
Engine name GCV 160
Engine type OHC
Fuel tank volume (with reserve) 0.93 l
Motor/engine manufacturer Honda
Net power at preset rpm Energy 3 kW
Handle type Comfort
Cutting deck material ABS plastic
Sound and Noise
Sound power level, guaranteed (LWA) 98 dB(A)
Sound power level, measured 96 dB(A)
Sound pressure level at operators ear 86.8 dB(A)
Vibrations handlebar 6.16 m/s²
