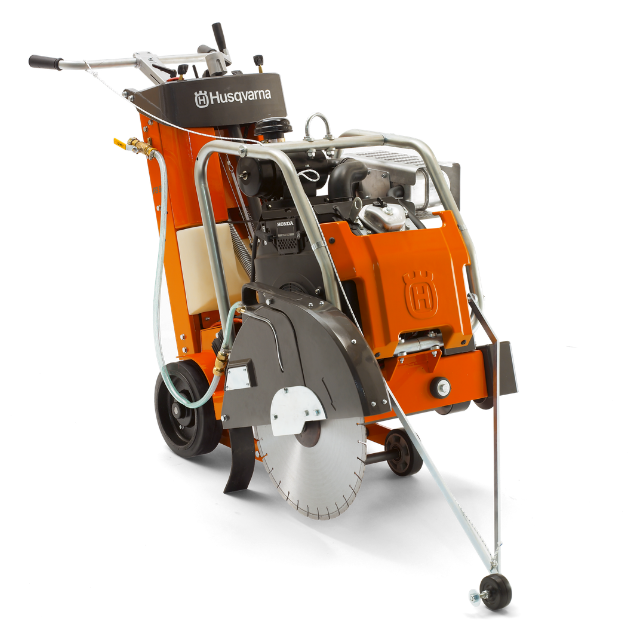

FS 524
Husqvarna Construction · Floor Saws
Husqvarna Construction
FS 524
By Husqvarna Construction
· SKU: UHCN FS524 967046102
Our convenient FS 524 is a powerful, yet compact, self-propelled petrol floor saw ideal for asphalt and concrete cutting. Suitable for small to medium-sized service and repair jobs, up to 241 mm cutting depth. The optimal power transmission makes it ideal for more demanding jobs, despite its compact size.
Power
15.5 kW
Max. Cutting Depth
247 mm
Weight
233 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Self-propelled
For easy operation and comfort.
Self-contained Drive System
Self-contained differential drive system eliminating drive gear from rear wheels related wear. It is simple to handle and maintain.
Adjustable Handles
Provides a closer and more comfortable position to the cutting side for easier alignment and straighter cuts. Handle can also be folded for transport.
Clear Depth Indicator
Adjustable for all blade diameters.
Engine
| Power Source | Petrol |
| Engine Brand | Honda |
| Engine Power | 15.5 kW / 20.8 hp @ 3,600 rpm |
| Engine Displacement | 688 cm³ |
| Fuel Type | Unleaded Gasoline With Maximum 10% Ethanol |
| Fuel Tank Capacity | 7.9 L |
| Oil Tank Capacity | 1.7 L |
Cutting Equipment
| Blade Guard Capacity | 600 mm / 24" |
| Maximum Cutting Depth | 247 mm |
| Maximum Spindle Speed | 3,600 rpm |
| Arbor Size | 25.4 mm / 1" |
| Blade Flange Diameter | 114 mm / 4.5" |
| Blade Coolant | Water |
Water System
| Blade Cooling | Water |
| Water Tank | Included |
| External Water Connection | Yes |
Drive & Operation
| Drive System | Self-Propelled |
| Starting System | Electric Start |
| Transmission System | Self-Contained Differential Drive |
| Blade Height Adjustment | Spring-Assisted Screw Feed |
| Handle Type | Adjustable Foldable Handle |
| Depth Indicator | Clear Adjustable Depth Indicator |
Features
| Low Vibration Design | Yes |
| Optimal Power Transmission | Yes |
| IntelliSeal Blade Shaft System | Yes |
| Low Maintenance Design | Yes |
| Adjustable Handles | Yes |
| Easy Blade Raising And Lowering | Yes |
| Parking Brake | Yes |
| Tool Storage | Yes |
Dimensions
| Rear Wheel Width | 570 mm / 22.5" |
| Maximum Width With Blade Guard Installed | 670 mm / 26.4" |
| Product Length With Pointer Up And Blade Guard Installed | 1,700 mm / 67" |
| Product Height | 1,080 mm / 42.5" |
| Product Weight With Empty Tanks | 233 kg |
| Operating Weight | 271 kg |
Sound & Noise
| Sound Power Level, Measured | 109.2 dB(A) |
| Sound Power Level, Guaranteed | 112 dB(A) |
| Sound Pressure Level At Operator's Ear | 101.4 dB(A) |
Vibration
| Right Handle Vibration Level | 2.4 m/s² |
| Left Handle Vibration Level | 1.8 m/s² |
