FS 410 D
Husqvarna Construction · Floor Saws
Husqvarna Construction
FS 410 D
By Husqvarna Construction
· SKU: UHCN FS410D 965150116

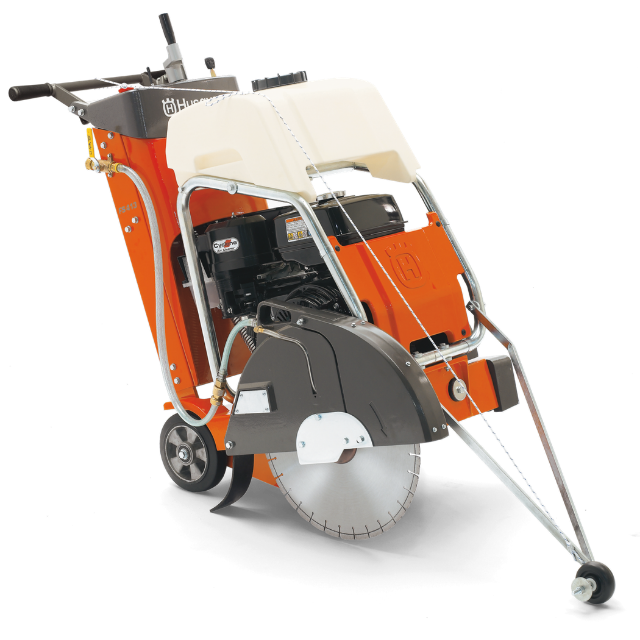

The Husqvarna FS 410 D is a compact diesel push floor saw designed for small to mid-sized cutting jobs in asphalt and concrete. Its 6.8 kW Yanmar engine, 500 mm blade capacity and 189 mm cutting depth provide reliable cutting performance with low vibration and easy handling.
Power
6.8 kW
Max. Cutting Depth
189 mm
Weight
165 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Low Vibrations
Engine and blade shaft mounting system increases comfort and gives excellent cutting performance.
Low Maintenance
The IntelliSeal blade shaft system allows for a minimum of 250 maintenance-free hours without daily greasing of bearings.
Easy To Adjust The Blade
Spring-assisted screws feed facilitates blade adjustment in and out of the cut.
Easy To Transport
Compact saw that is easy to lift.
Engine
| Power Source | Diesel |
| Engine Brand | Yanmar |
| Engine Type | L100V6 |
| Engine Power | 6.8 kW / 9.2 hp @ 3,600 rpm |
| Engine Displacement | 0.435 L / 435 cm³ |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 5.4 L |
| Oil Tank Capacity | 1.6 L |
Cutting Equipment
| Blade Guard Capacity | 500 mm / 20" |
| Maximum Cutting Depth | 189 mm / 7.6" |
| Maximum Spindle Speed | 2,700 rpm |
| Arbor Size | 25.4 mm / 1" |
| Blade Flange Diameter | 114 mm / 4.5" |
| Blade Coolant | Water |
Water System
| Blade Cooling | Water |
| Water Tank | Included |
| External Water Connection | Yes |
Drive & Operation
| Drive System | Push |
| Blade Height Adjustment | Spring-Assisted Screw Feed |
| Handle Type | Adjustable Foldable Handle |
| Blade Guard Position | Can Be Moved To Opposite Side |
Features
| Low Vibration Design | Yes |
| IntelliSeal Blade Shaft System | Yes |
| Easy Blade Raising And Lowering | Yes |
| Easy Transport Design | Yes |
| Lifting Eye | Yes |
Dimensions
| Product Length With Blade Guard And Pointer Up | 1,405 mm / 55.3" |
| Maximum Width With Blade Guard | 600 mm / 23.6" |
| Product Height | 1,130 mm / 44.5" |
| Wheel Base Width | 412 mm / 16.2" |
| Rear Wheel Width | 465 mm / 18.3" |
| Product Weight With Empty Tanks | 165 kg |
| Operating Weight | 199 kg |
Sound & Noise
| Sound Power Level, Measured | 110 dB(A) |
| Sound Power Level, Guaranteed | 112 dB(A) |
| Sound Pressure Level At Operator's Ear | 102 dB(A) |
Vibration
| Right Handle Vibration Level | 2.6 m/s² |
| Left Handle Vibration Level | 3.2 m/s² |
Product Brochure
Husqvarna Construction FS 410 D
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
