DS 500
Husqvarna Construction · Concrete Core Drills
Husqvarna Construction
DS 500
By Husqvarna Construction
· SKU: UHCN DS500 967968601

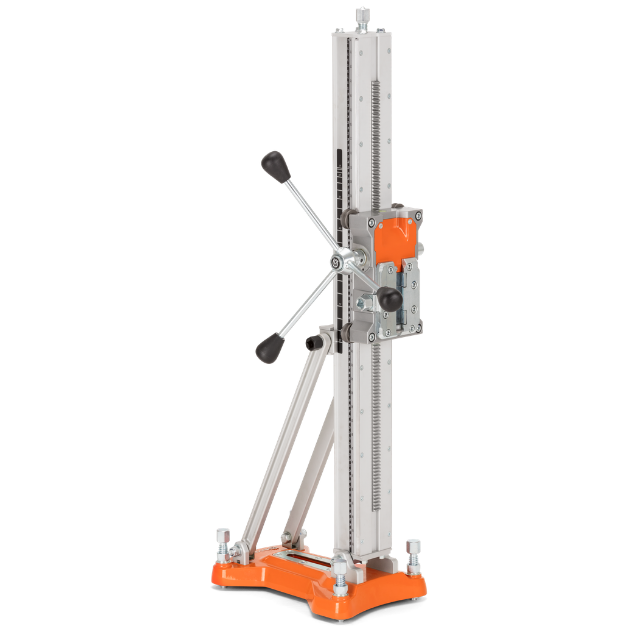

DS 500 is a medium-size drill stand, suitable for a wide range of professional core drilling operations. Combines high stability and sturdiness with surprisingly low weight. The slim-design carriage with optimised gear ratio works exceptionally well with Husqvarna DM 400, DM 430, and similar high-powered 1-phase drill motors.
Column Angling
0 – 90°
Weight
17.6 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Durable And Sturdy
The all-metal design with an optimised setup of steel, aluminium and magnesium components ensures stability without adding unnecessary weight.
High Stability And Low Weight
The steel-reinforced die cast magnesium base plate ensures rigid anchoring and keeps the overall weight down.
Easy To Install And Operate
The quick-release coupling for drill motor and easy adjustment of back support angle allows for easy setup and angle drilling. The carriage can easily be removed from the column when needed.
Stitch Drilling
Drilling multiple holes next to each other to make openings.
Drilling Capacity
| Maximum Drill Bit Diameter | 500 mm / 20" |
| Maximum Travel Length | 706 mm |
| Drilling Applications | Vertical, Horizontal, Angled And Stitch Drilling |
| Suitable Drilling Positions | Floors, Walls And Ceilings |
Drill Column
| Column Angling | 0–90° |
| Column Material | Steel-Reinforced Extruded Aluminium |
| Extended Drill Column | 2 m Column Available As An Accessory |
| Maximum Load On Handle | 120 kg |
Motor Mounting & Compatibility
| Motor Mounting System | Quick-Release Coupling |
| Quick Mounting Plate | Yes |
| Removable Carriage | Yes |
| Compatible Drill Motors | DM 1 PACE / DM 370 / DM 400 / DM 430 |
| Quick Spacer | Available As An Accessory |
| Maximum Drill Diameter With DM 400 And 50 mm Spacer | 470 mm |
| Maximum Drill Diameter With DM 430 And 50 mm Spacer | 470 mm |
| Maximum Drill Diameter With DM 700 / DM 650 And 50 mm Spacer | 500 mm |
Base & Installation
| Base Plate Material | Steel-Reinforced Die-Cast Magnesium |
| Installation Methods | Expander Bolt / Vacuum Plate / All-Thread Rod |
| Level Adjustment Screws | Yes |
| Integrated Level Indicator | Yes |
| Vacuum Plate | Available As An Accessory |
| Transport Wheels | Available As An Accessory |
Features
| All-Metal Construction | Yes |
| Zero-Play Hinge Design | Yes |
| Adjustable Back Support | Yes |
| Carriage Lock | Yes |
| End Stop | Yes |
| Insulated Feed Lever Grip | Yes |
| Feed Lever Gear Ratio | Optimised For High-Powered Drill Motors |
Dimensions
| Product Height | 1,050 mm |
| Product Width | 240 mm |
| Product Depth | 394 mm |
| Weight | 17.6 kg |
Product Brochure
Husqvarna Construction DS 500
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
