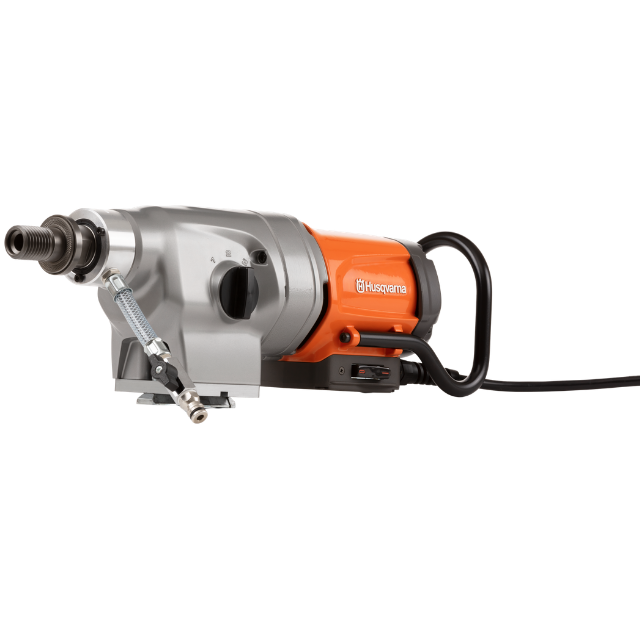

DM 430
Husqvarna Construction · Concrete Core Drills
Husqvarna Construction
DM 430
By Husqvarna Construction
· SKU: UHCN DM430 970445607
DM 430 is a powerful and sturdy electric core drill for medium to heavy core drilling where reliability and high productivity is needed, especially with large diameter core bits. Suitable for water evacuation, ventilation, angle drilling , stitch drilling and when you need cut close to corners.
Power
3.2 kW
Max. Diameter
450 mm w/ Stand
Weight
15.5 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Study and Durable
Equipped with an aluminium housing and the protective carrying handle ensures rough handling.
Quick Connection
Enables ease of connection to a drill stand.
Quick-release Washer
Enables easy dispatch of drill core bits.
Load Indicator
The LED indicator shows the load of the machine, allowing the operator to always drill at maximum pressure, for best performance.
Motor
| Power Source | Corded Electric |
| Motor Type | Single-Phase Electric Motor |
| Rated Input Power | 3.2 kW |
| Rated Output Power | 2.3 kW |
| Rated Voltage | 220–240 V |
| Rated Frequency | 50–60 Hz |
| Rated Current | 15 A |
| PRCD Current | 10 mA |
Drilling Capacity
| Maximum Drill Bit Diameter With Stand | 450 mm / 18" |
| Minimum Drill Bit Diameter | 100 mm / 4" |
| Recommended Drill Bit Diameter | 100–450 mm |
| Drilling Method | Wet Drilling |
| Suitable Materials | Concrete, Rock, Asphalt And Masonry |
| Operating Configuration | Drill Stand Mounted |
Gearbox
| Gearbox | 3-Speed Gearbox |
| Spindle Speed Under Full Load, Gear 1 | 150 rpm |
| Spindle Speed Under Full Load, Gear 2 | 300 rpm |
| Spindle Speed Under Full Load, Gear 3 | 470 rpm |
| Spindle Speed Without Load, Gear 1 | 250 rpm |
| Spindle Speed Without Load, Gear 2 | 510 rpm |
| Spindle Speed Without Load, Gear 3 | 800 rpm |
| Recommended Drill Bit Diameter, Gear 1 | 250–450 mm / 8–18" |
| Recommended Drill Bit Diameter, Gear 2 | 125–250 mm / 5–10" |
| Recommended Drill Bit Diameter, Gear 3 | 100–160 mm / 4–6" |
Tool Connection
| Spindle Thread | CR1-28 / 1 1/4"-7 UNC |
| Quick-Release Washer | Yes |
| Quick Drill Stand Connection | Yes |
Water System
| Water Cooling | Yes |
| Water Coupling | Gardena® |
| Maximum Water Pressure | 3 bar |
| Recommended Water Flow, Gear 1 | 2–2.5 L/min |
| Recommended Water Flow, Gear 2 | 1.5–2 L/min |
| Recommended Water Flow, Gear 3 | 1.2–1.6 L/min |
| Compatible Slurry Ring Drill Diameter | 50–350 mm / 2–13.8" |
Features
| Smartstart™ Reduced-Speed Starting | Yes |
| Elgard™ Overload Protection | Yes |
| Motor Load Indicator | LED |
| Embedded Connectivity | Yes |
| Husqvarna Fleet Services™ Compatibility | Yes |
| Aluminium Motor Housing | Yes |
| Protective Carrying Handle | Yes |
| Friction Clutch | Yes |
Dimensions
| Weight | 15.5 kg |
Sound & Noise
| Sound Pressure Level At Operator's Ear | 92 dB(A) |
| Sound Power Level | 112 dB(A) |
Product Brochure
Husqvarna Construction DM 430
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
