DM 230
Husqvarna Construction · Concrete Core Drills
Husqvarna Construction
DM 230
By Husqvarna Construction
· SKU: UHCN DM230 968411001

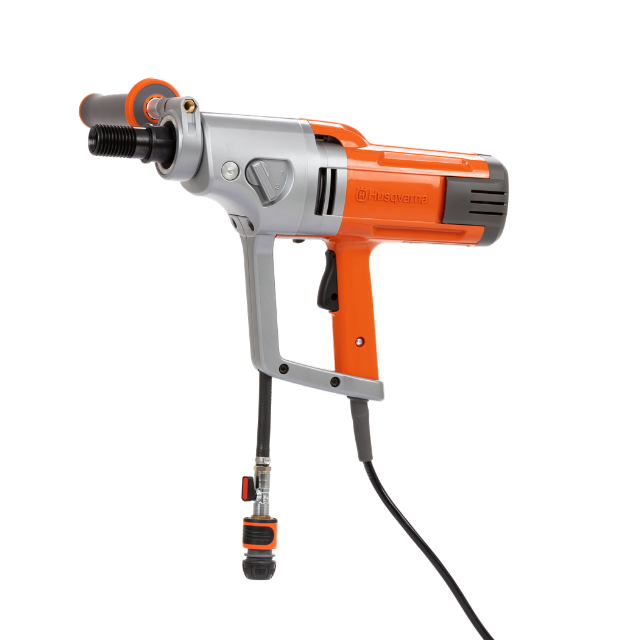

The Husqvarna DM 230 is a compact corded electric core drill designed for wet or dry drilling in concrete, brick and rock. Its 1.85 kW motor, three-speed water-cooled gearbox and ergonomic pistol grip support handheld drilling up to 80 mm and stand-mounted drilling up to 150 mm.
Power
1.85 kW
Max. Diameter
150mm w/ Stand
Weight
7 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Overload Protection
The machine uses pulsation to warn you of an approaching overload. If the load is not reduced, the motor will shut off to prevent overheating. Elgard™ increases productivity and extends product life.
Easy Start With Reduced Speed
To facilitate making a starter hole, speed is reduced by half using the Smart Start® button.
Softstart™
An electronic current limiter for soft starts with normal fuses. This gives you a smooth start with high productivity.
Motor
| Power Source | Corded Electric |
| Motor Type | Single-Phase Electric Motor |
| Rated Input Power | 1.85 kW |
| Rated Voltage | 220–240 V |
| Rated Frequency | 50 Hz |
| Rated Current | 8 A |
| PRCD Current | 10 mA |
Drilling Capacity
| Maximum Handheld Drill Bit Diameter | 80 mm |
| Maximum Drill Bit Diameter With Stand | 150 mm / 6" |
| Drilling Methods | Wet And Dry Drilling |
| Suitable Materials | Concrete, Brick And Rock |
Gearbox
| Gearbox | Water-Cooled 3-Speed Gearbox |
| Drill Bit Speed Under Load, Gear 1 | 580 rpm |
| Drill Bit Speed Under Load, Gear 2 | 1,400 rpm |
| Drill Bit Speed Under Load, Gear 3 | 2,900 rpm |
| Drill Bit Speed Without Load, Gear 1 | 730 rpm |
| Drill Bit Speed Without Load, Gear 2 | 1,700 rpm |
| Drill Bit Speed Without Load, Gear 3 | 3,600 rpm |
| Recommended Drill Bit Diameter, Gear 1 | 100–150 mm / 4–6" |
| Recommended Drill Bit Diameter, Gear 2 | 40–80 mm / 2–4" |
| Recommended Drill Bit Diameter, Gear 3 | 0–40 mm / 0–2" |
Tool Connection
| Spindle Thread | 1 1/4" / G 1/2" |
Water System
| Water Coupling | Gardena® |
| Maximum Water Pressure | 3 bar |
Features
| Overload Protection | Elgard™ |
| Reduced-Speed Starting | Smart Start® |
| Electronic Soft Start | Softstart™ |
| Pistol-Grip Design | Yes |
| Wet And Dry Drilling Capability | Yes |
| Spirit Level | Yes |
Dimensions
| Weight | 7 kg |
Sound & Noise
| Sound Power Level | 114 dB(A) |
| Sound Pressure Level At Operator's Ear | 98 dB(A) |
Vibration
| Front Handle Vibration Level | 2.8 m/s² |
| Rear Handle Vibration Level | 2.6 m/s² |
