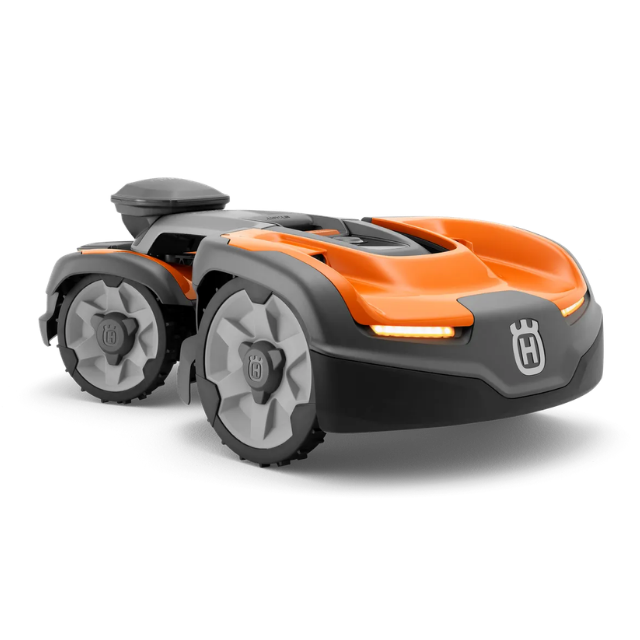

AUTOMOWER® 535 AWD EPOS™
Husqvarna · EPOS
Husqvarna
AUTOMOWER® 535 AWD EPOS™
By Husqvarna
· SKU: UHUQ AM580L EPOS 970730521
The Husqvarna Automower® 535 AWD EPOS® is a professional robotic mower designed for large, complex and sloped commercial turf areas. Its all-wheel-drive system, EPOS® wire-free technology and Fleet Services™ connectivity provide flexible automated mowing with precise area management.
Working Area
Up to 6,000 m²
Slope Handling
70%
Runtime Per Charge
Up to 145 minutes
Sound Level
60 dB(A)
Authorised Husqvarna Distributor
Parts & Servicing Available
Fast Response

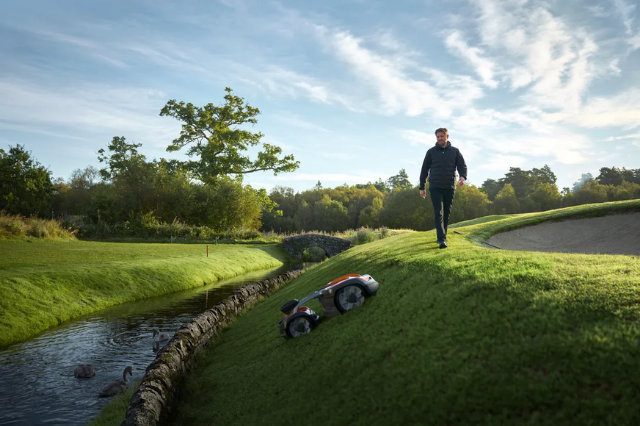

All Wheel Drive
Automower® AWD models feature technology that optimizes the control of each individual wheel in order to enable superior operation in the most demanding terrain. With an impressive slope performance that handles 70 % (35°) incline. Automower® AWD rewrites the rules for autonomous maintenance of green spaces, improving the safety of your workforce.

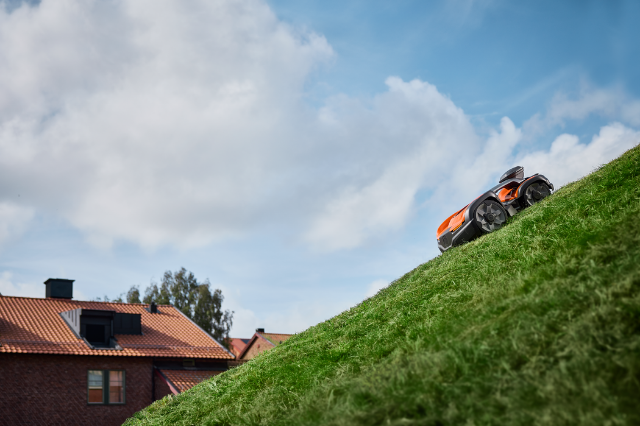

Manages Slopes Up To 70%
Large coarse-tread wheels provide excellent traction even if the surface is slippery. The mower handles slopes up to 70%.

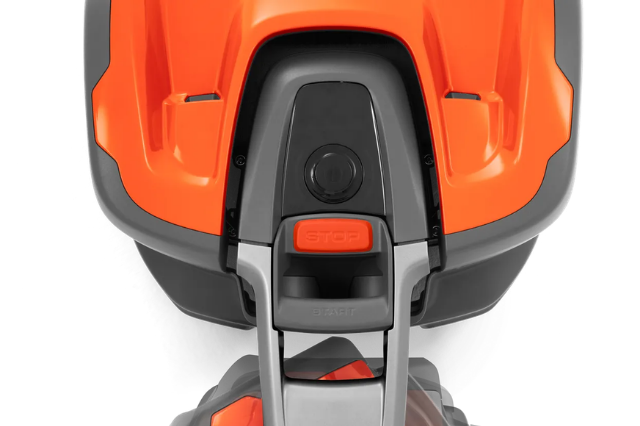

Pivoting Rear Body Design
The articulated rear body design enables excellent maneuverability for navigation on complex lawns and through passages. The rear body also has a pivoting capability, considerably enhancing the traction in rough terrain, making the most out of the AWD operation on Automower® AWD models.

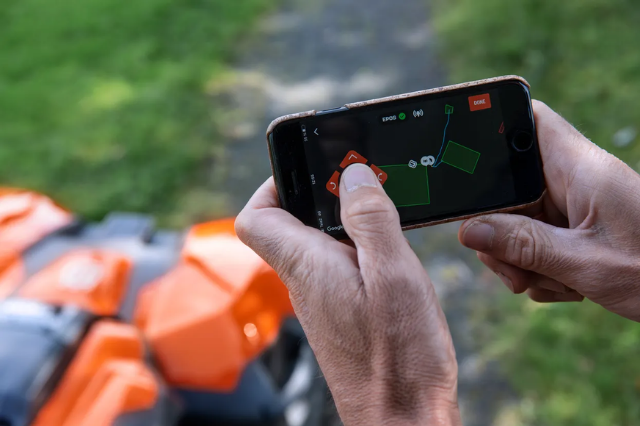

appDrive - Operate By Remote
Seize the opportunity to operate the product using a remote control via the appDrive feature on your smartphone. The handling is easy and user-friendly, sparing you from strenuous, unnecessary lifting when the product needs to be moved between workspaces, to the service facility, or during installation.
Capacity
| Working Area Capacity | 6,000 m² |
| Boundary Type | Physical Wire / Virtual Wire |
| Maximum Slope Performance At Boundary | 50% |
| Maximum Slope Performance Inside Installation | 70% |
| Maximum Active Time | 24 h |
| Follow Guide | Virtual Transport Path |
| Charging System | Automatic |
| Area Capacity, Standard 48 | 6,000 m² |
| Area Capacity, Sports 24 | 3,000 m² |
Battery & Charging
| Power Source | Battery |
| Battery Chemistry | Lithium-Ion |
| Battery Capacity | 8 Ah |
| Charging Current | 7 A |
| Typical Mow Time On One Charge | 145 min |
| Typical Charging Time | 45 min |
| Mean Energy Consumption Per Month At Maximum Use | 25 kWh |
Cutting System
| Cutting System | 5 Pivoting Razor Blades |
| Cutting Width | 22 cm |
| Minimum Cutting Height | 30 mm |
| Maximum Cutting Height | 70 mm |
| Cutting Height Adjustment | Electric |
| Skid Plate | Yes |
| Dual Cutting Direction | Yes |
Control & Connectivity
| User Interface | Professional User Interface / App |
| Display | None |
| Connectivity | Bluetooth® / Cellular |
| App Controlled | Husqvarna Fleet Services™ |
| Smart Home Integration | Yes |
| Firmware Update | FOTA |
Safety & Security
| GPS Theft Tracking | Yes |
| GeoFence | Yes |
| PIN Code | Yes |
| Alarm | Yes |
| Lift Sensor | Yes |
| Tilt Sensor | Yes |
| Object Detection | Ultrasonic |
Features
| EPOS® Wire-Free Technology | Yes |
| All-Wheel Drive | Yes |
| Pivoting Rear Body Design | Yes |
| Selectable Mowing Pattern | Yes |
| Customised Work Areas | Yes |
| Temporary Stay-Out Zones | Yes |
| EPOS® Guidance | Yes |
| Maintenance Point | Yes |
| appDrive Remote Operation | Yes |
| Weather Timer | Yes |
| AIM Technology | Yes |
| Electric Height Adjustment | Yes |
| Remote Object Detection | Yes |
| Weatherproof Design | Yes |
Sound & Protection
| Sound Level Perceived | 60 dB(A) |
| Protection Index | IPX4 |
Dimensions
| Product Length | 93 cm |
| Product Width | 55 cm |
| Product Height | 33 cm |
| Weight | 18.1 kg |
Product Brochure
Husqvarna AUTOMOWER® 535 AWD EPOS™
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
Looking for more Husqvarna EPOS?
Browse our full range in this category
