540i XP

540i XP

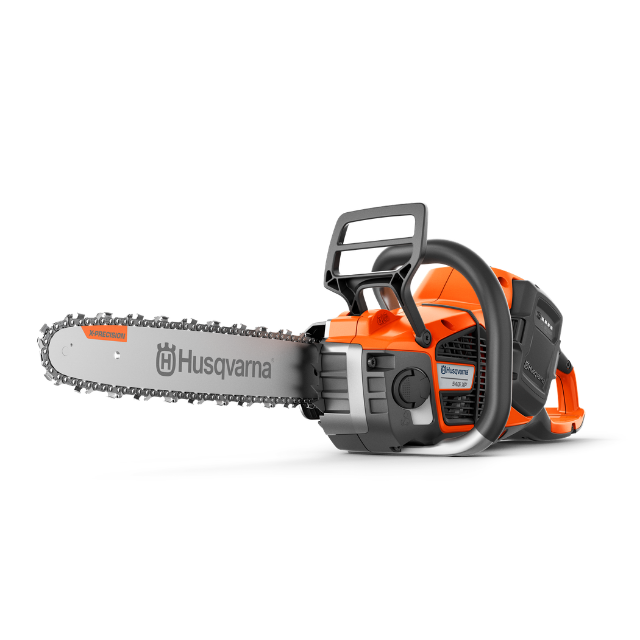

Husqvarna 540i XP is a powerful and efficient battery-powered chainsaw, equivalent to a 40cc pro petrol saw when fitted with a BLi300 battery. It’s ideal for removal of small and mid-sized trees where you need smooth and efficient cuts. Designed for professionally oriented users who want a lightweight, high performance rear-handle chainsaw.

Battery Voltage Weight
36 V 2.9 kg

Features

  • Husqvarna connect
  • High chain speed
  • Low maintenance
  • Weatherproof (IPX4) – Use in all weather conditions
  • Gear up for nonstop operation
  • Allows you to quickly switch the same battery between different product applications and keep working.
  • Choose savE™ mode for maximum runtime
  • The key pad is very easy to operate.
  • The retaining function prevents loosing the bar nuts.
  • In-house developed brushless motor provides a high and consistent torque.
  • The flip-up tank cap is easy to open.
  • Increased safety, inertia activated chain brake
Low maintenance

No refilling of fuel, less parts to serve and an electronically controlled drive system means less downtime and low operation costs.

High chain speed

High chain speed for fast, smooth cutting

Husqvarna Connect

With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play. Not yet available on all markets.

Weatherproof (IPX4)

This battery-powered Husqvarna machine fulfils the IPX4 classification for rain resistance. This makes it a long-lasting and reliable tool that can be used all year round in all weather conditions.

Specifications

Battery
Battery type Li-Ion
Battery voltage 36 V
Capacity
Chain speed at max power 24 m/s
Dimensions
Article gross weight 4276 g
Article net weight 3880 g
Bar length (inch) 14″
Product size height 23.5 cm
Product size length 46 cm
Product size width 20 cm
Recommended bar length, max 40 cm
Recommended bar length, min 30 cm
Size 14″
Weight (excl. battery and cutting equipment) 2.9 kg
Equipment
Bar mount Small
Bar mount type Small
Chain type SP21G
Chainsaw sub-group Professional sawa
Gauge 1.1 mm
Pitch .325″ mini
Sprocket type Spur 7
Lubricants
Oil pump capacity Max 19 ml/min
Oil pump capacity Min 9 ml/min
Oil pump type Adjustable flow
Oil tank volume 0.2 l
Power source Battery
Power/fuel type Battery
Sound and Noise
Sound power level, guaranteed (LWA) 106 dB(A)
Sound power level, measured 104 dB(A)
Sound pressure level at operators ear 95 dB(A)
Vibrations
Daily Vibration (Aeqv) 3.7 m/s²
Daily Vibration Exposure (A8) 2.5 m/s²
Daily Vibration Time (Time factor) 3.7 h
Equivalent vibration level (ahv, eq) front handle 3.6 m/s²
Equivalent vibration level (ahv, eq) rear handle 3.7 m/s²
Packaging
Packaging height 258 mm
Packaging length 490 mm
Packaging width 280 mm
Quantity in Master pack 1
