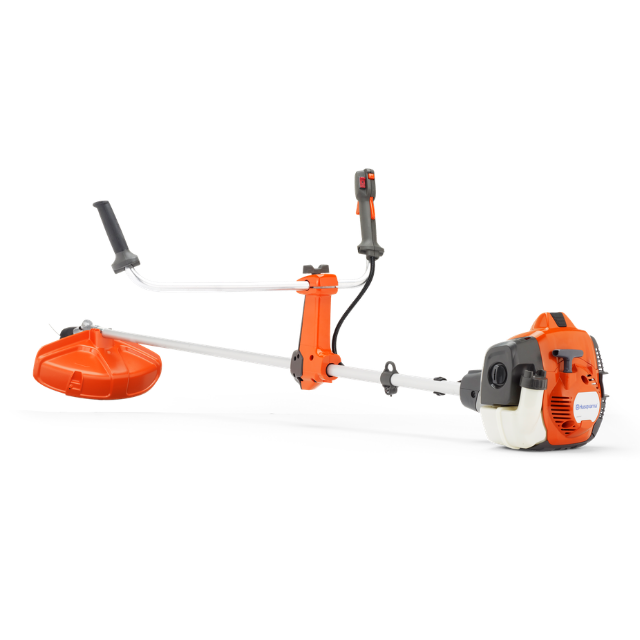

525RX

525RX

Powerful yet lightweight and comfortable brushcutter. Tough on grass and undergrowth, easy on you.

Cylinder Displacement Weight
25.4 cm┬│ 4.9 kg

Features

  • Intuitive controls
  • X-Torq┬« engine cuts emission and fuel consumption
  • Offset handle bar for best comfort
  • Balance 35 ergonomic harness
  • Air purge for easier cold starting
  • Auto return stop switch for easy starting
Offset handle bar
Angled handlebar and comfort handles provides excellent grip and working position.
X-Torq® engine

The X-Torq® engine design reduces harmful exhaust emissions by up to 75% and increases fuel efficiency by up to 20%.

Intuitive controls
The choke and purge are easy to reach and understand.
Balance 35

Ergonomic harness that distribute the load optimally between your shoulders, chest and back.

Specifications

Do you need further details to make the right decision? Learn more in the specifications section below.

 Dimensions
Weight (excl. cutting equipment) 4.9 kg
Tube length 1483 mm
Tube diameter 24 mm
Equipment
OEM Grass blade Grass 255-4
OEM Harness Balance 35
OEM Trimmer head T35 M10
 Sound And Noise
Sound power level, guaranteed (LWA) 106 dB(A)
Sound power level, measured 104 dB(A)
Sound pressure level at operators ear 93 dB(A)
 Vibration
Equivalent vibration level (ahv, eq) front handle 2.1 m/s┬▓
Equivalent vibration level (ahv, eq) rear handle 2.3 m/s┬▓
 Emission
Exhaust emissions (CO average) 87.57 g/kWh
Exhaust emissions (NOx average) 0.56 g/kWh
 Lubricant
Lubricant type Husqvarna 2 stroke or equiv. at 50:1
 Transmission
Gear ratio 19
Drive gear angle 30 ┬░
 Engine
Clutch engagement speed (±120)  4000 rpm
Cylinder bore 34 mm
Cylinder displacement 25.4 cm┬│
Cylinder stroke 28 mm
Electrode gap 0.65 mm
Fuel consumption 600 g/kWh
Fuel tank volume 0.51 l
Idling speed 3000 rpm
Ignition module air gap 0.3 mm
Maximum power speed 8500 rpm
Maximum rpm output shaft 6500 rpm
Power output 1 kW
Spark plug NGK BPMR8Y
Torque, max. 1.2 Nm
Torque, max. at rpm 6000 rpm
