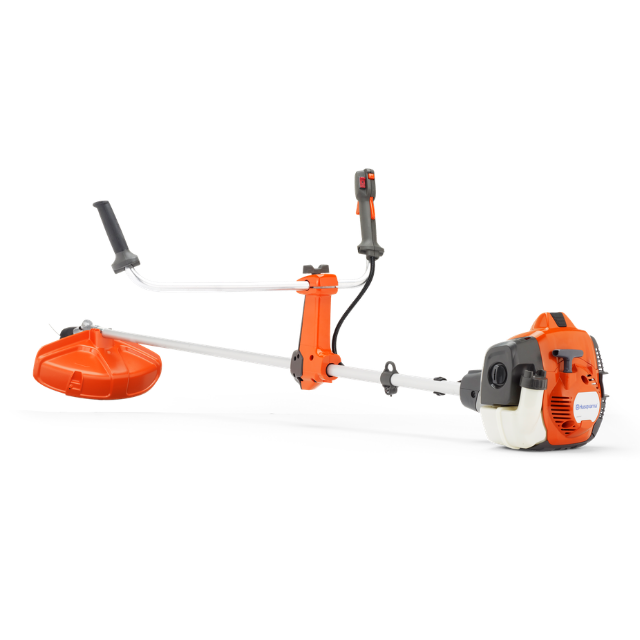

525RX
Powerful yet lightweight and comfortable brushcutter. Tough on grass and undergrowth, easy on you.
| Cylinder Displacement | Weight |
| 25.4 cm³ | 4.9 kg |
525RX
Features
- Intuitive controls
- X-Torq® engine cuts emission and fuel consumption
- Offset handle bar for best comfort
- Balance 35 ergonomic harness
- Air purge for easier cold starting
- Auto return stop switch for easy starting
 |
Offset handle bar Angled handlebar and comfort handles provides excellent grip and working position. |
 |
X-Torq® engine
The X-Torq® engine design reduces harmful exhaust emissions by up to 75% and increases fuel efficiency by up to 20%. |
 |
Intuitive controls The choke and purge are easy to reach and understand. |
 |
Balance 35
Ergonomic harness that distribute the load optimally between your shoulders, chest and back. |
Specifications
| Â Dimensions | |
| Weight (excl. cutting equipment) | 4.9 kg |
| Tube length | 1483 mm |
| Tube diameter | 24 mm |
| Equipment | |
| OEM Grass blade | Grass 255-4 |
| OEM Harness | Balance 35 |
| OEM Trimmer head | T35 M10 |
| Â Sound And Noise | |
| Sound power level, guaranteed (LWA) | 106 dB(A) |
| Sound power level, measured | 104 dB(A) |
| Sound pressure level at operators ear | 93 dB(A) |
| Â Vibration | |
| Equivalent vibration level (ahv, eq) front handle | 2.1 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 2.3 m/s² |
| Â Emission | |
| Exhaust emissions (CO average) | 87.57 g/kWh |
| Exhaust emissions (NOx average) | 0.56 g/kWh |
| Â Lubricant | |
| Lubricant type | Husqvarna 2 stroke or equiv. at 50:1 |
| Â Transmission | |
| Gear ratio | 19 |
| Drive gear angle | 30 ° |
| Â Engine | ||
| Clutch engagement speed (±120) |  4000 rpm | |
| Cylinder bore | 34 mm | |
| Cylinder displacement | 25.4 cm³ | |
| Cylinder stroke | 28 mm | |
| Electrode gap | 0.65 mm | |
| Fuel consumption | 600 g/kWh | |
| Fuel tank volume | 0.51 l | |
| Idling speed | 3000 rpm | |
| Ignition module air gap | 0.3 mm | |
| Maximum power speed | 8500 rpm | |
| Maximum rpm output shaft | 6500 rpm | |
| Power output | 1 kW | |
| Spark plug | NGK BPMR8Y | |
| Torque, max. | 1.2 Nm | |
| Torque, max. at rpm | 6000 rpm | |
