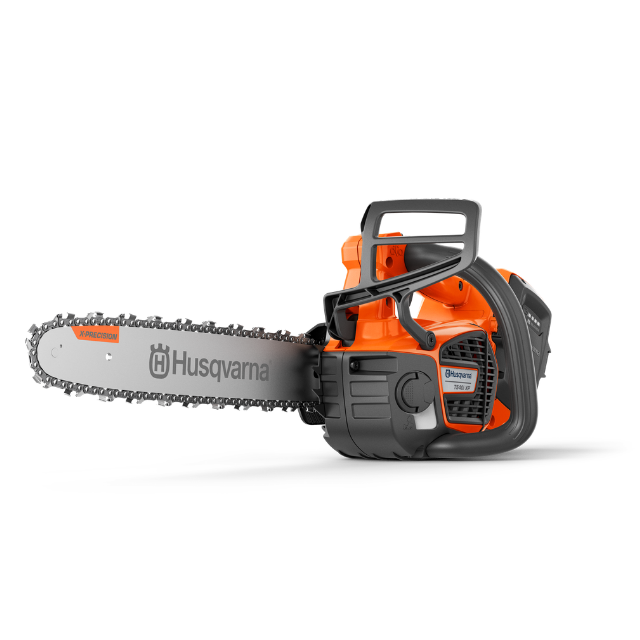

T540i XP

T540i XP

Husqvarna T540i XP is our most powerful battery-powered top-handle chainsaw, equivalent to a 40cc pro petrol saw when fitted with a BLi200X battery. This saw is the ideal tool for all professional tree care. Designed for arborists who want a smooth, high performance chainsaw. Features excellent ergonomics, high chain speed, low weight and all the benefits of battery power, without compromising cutting performance. The integrated connectivity makes it easy to keep track of usage stats, service history and last known location in the Husqvarna Fleet Servicesâ„¢ app.

Battery Voltage Weight
36V 2.5 kg

Features

  • Husqvarna Connect
  • High chain speed
  • Unobstructed view
  • Rope eyelet in rear handle
  • Weatherproof (IPX4) – Use in all weather conditions
  • Quick connection to the climbing harness
  • The key pad is very easy to operate.
  • Gear up for nonstop operation
  • Allows you to quickly switch the same battery between different product applications and keep working.
  • Choose savEâ„¢ mode for maximum runtime
  • The retaining function prevents loosing the bar nuts.
  • In-house developed brushless motor provides a high and consistent torque.
  • The flip-up tank cap is easy to open.
  • Increased safety, inertia activated chain brake
Unobstructed view

The hand guard design allows for an unobstructed view while doing precise cuts.

High chain speed

High chain speed for fast, smooth cutting.

Husqvarna Connect

With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play. Not yet available on all markets.

Rope attachment

A sturdy point for fastening a rope, making it easy to hoist the saw up into a tree.

Specifications

Battery
Battery type Li-Ion
Battery voltage 36V
Capacity
Chain speed at max power 24 m/s
Dimensions
Article gross weight 4105 g
Article net weight 3510 g
Bar length (inch) 14″
Product size height 23.5 cm
Product size length 30.5 cm
Product size width 20 cm
Recommended bar length, max 40 cm
Recommended bar length, min 30 cm
Size 14″
Weight (excl. battery and cutting equipment) 2.5 kg
Engine
Motor type BLDC (brushless)
Equipment
Bar mount Small
Bar mount type Small
Chain type SP21G
Chainsaw sub-group Tree-care saws
Gauge 1.1 mm
Pitch .325″ mini
Sprocket type Spur 7
Lubricants
Oil pump capacity Max 19 ml/min
Oil pump capacity Min 9 ml/min
Oil pump type Adjustable flow
Oil tank volume 0.2 l
Power source Battery
Power/fuel type Battery
Sound and Noise
Sound power level, guaranteed (LWA) 103 dB(A)
Sound power level, measured 101 dB(A)
Sound pressure level at operators ear 98 dB(A)
Vibrations
Daily Vibration (Aeqv) 3.4 m/s²
Daily Vibration Exposure (A8) 1.9 m/s²
Daily Vibration Time (Time factor) 2.4 h
Equivalent vibration level (ahv, eq) front handle 2.1 m/s²
Equivalent vibration level (ahv, eq) rear handle 3.4 m/s²
