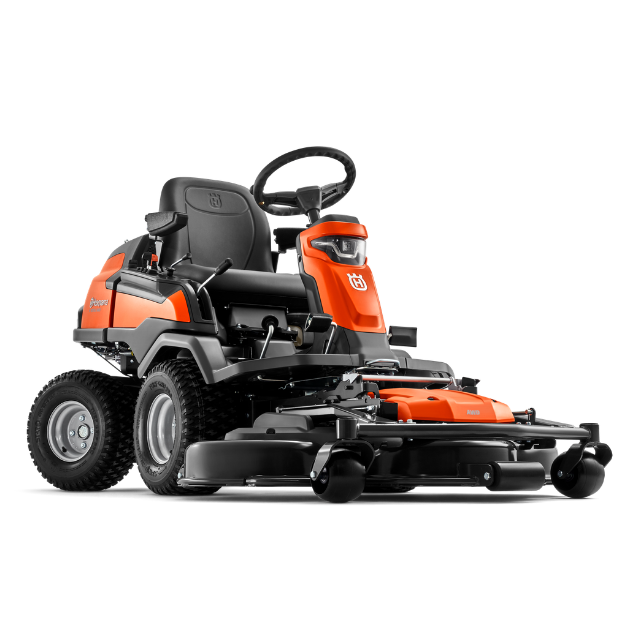

R 420TsX AWD

R 420TsX AWD

A compact, high-performance All-Wheel-Drive Rider with powerful Kawasaki V-twin Engine and power steering that easily manages large, tight and hilly areas. The unique XChange attachment frame allows you to change attachment quickly and without the use of tools. Thanks to Bluetooth connectivity, you easily monitor your Rider with the Husqvarna Connect app. Equipped with Dual LEDlights, Turn Key Start, adjustable steering wheel and a convenient luggage rack, R 420TsX AWD is an excellent choice for private estate owners, sports facilities and hotels with large areas to maintain year- round. Delivered deckless.

Battery voltage Weight (excluding cutting equipment)
12 V 316 kg

Features

  • All-Wheel Drive secure traction on all areas
  • Commercial grade OHV-engines by Kawasaki
  • Easy and quick exchange of attachments in just a minute and without any tools
  • Power steering makes more enjoyable drive
  • HMI Display for real time updates on your Rider’s status
  • Dual LED lights for improved visibility, both near and remote.
  • 595084001 mode for frequently cut areas
  • Accessories for versatile year-round usage
  • Service position for easy deck maintenance
  • Turn key start
  • Pedal-operated hydrostatic transmission
  • Pivoting support wheels on the cutting deck
  • Pivoting rear axle for maximum traction
  • Adjustable seat, while seated
  • All controls collected on a control panel
  • Easy and tooless adjustment of the steering wheel
  • Steering wheel with defined grip areas and knob
  • Practical cargo holder for extra equipment
  • Oil-cooled hydraulic system
  • Double 12V socket outlet for electric equipment
  • Floating cutting deck for reduced risk of scalping
  • Comfortable high-back premium seat
  • Improved performance by hydraulic tool lift
  • Easy-access cutting height lever
  • Comfortable driver’s position
  • Easy-access controls for user comfort
  • Engine behind driver for better overview
  • Equally sized wheels for a comfortable ride
  • Front-mounted deck for optimum accessibility
  • With the smart Husqvarna Connect app, you’ll have easy access to tips, manuals and spare part recommendations. The app also provides additional information such as runtime and charging status as well as maintenance and service needs. Not yet available on all markets.
XChange

Unique quick coupling allows attachments to be changed quickly and easily without the need for any tools. Get ready for a new task in just a minute.

Kawasaki FS-series

Kawasaki V-twin, overhead-valve engine with full pressure lubrication and spin-on oil filter. Combines exceptional power and torque with fuel efficiency and reduced emissions.

All-Wheel-Drive (AWD)
All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.
Power steering

Power steering makes driving less strenuous and more enjoyable.

Specifications

Battery
Battery capacity 24 Ah
Battery manufacturer Global
Battery pack weight 7 kg
Battery type Lead / Acid
Battery voltage 12 V
Quantity of batteries/battery pack 1 pcs
Dimensions
Article gross weight 385000 g
Article net weight 316000 g
Base machine, height 117.8 cm
Base machine, length 206.6 cm
Base machine, width 96.4 cm
Cutting height steps 110 mm
Ground clearance 150 kg
Gross weight towed 200/65-8
Tyre dimensions, front 200/65-8
Tyre dimensions, rear 316 kg
Weight 95.8 cm
Weight (excl. cutting equipment) 325.2 kg
Wheelbase 95.8 cm
Engine
Cylinder displacement 726 см³
Cylinders 2
Electric start Yes
Engine cooling Fan / Air
Engine lubrication type Full pressure
Engine name FS Series V-Twin
Motor/engine manufacturer Kawasaki
Motor/engine model FS651V
Spark plug NGK BPR4ES
Equipment
12V outlet Yes
Air filter type Dual element
All-Wheel Drive (AWD) Yes
Blade engagement Electromagnetic clutch
Blades 3 pcs
Cup holder Yes
Drive method Pedal-operated
Drive system All-wheel drive
Foldable seat Yes
Headlights Yes
Hinged armrests Optional
Hinged armrests Yes
Hydraulic equipment lift Yes
Seat manufacturer Milsco
Serie 400-serie
Service position Yes
Technical Platform R 400-series
Wheelbase 95.8 cm
Lubricants
Engine lubrication type Full pressure
Fuel consumption 349 g/kWh
Fuel tank volume (with reserve) 17 l
Power/fuel type Gasoline
Sound and Noise
Sound power level, guaranteed (LWA) 98 dB(A)
Sound power level, measured 97 dB(A)
Sound pressure level at operators ear 82 dB(A)
Vibrations
Vibration level seat 0.15 m/s²
Vibration level steering wheel 2.67 m/s²
Emission Data EU
Exhaust emissions (CO2 EU V) 792 g/kWh
