PP 455 E
Husqvarna Construction · Power Packs
Husqvarna Construction
PP 455 E
By Husqvarna Construction
*Used with Husqvarna CS 2512 Wire Saw

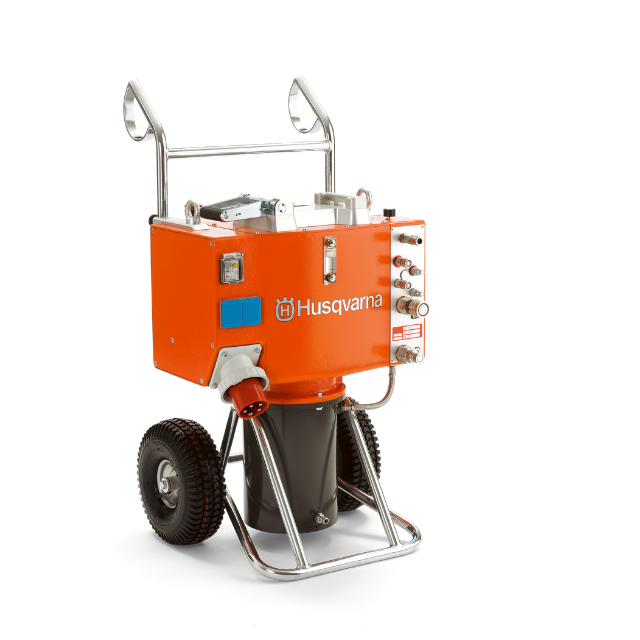

The Husqvarna PP 455 E is a powerful electrically driven hydraulic power pack developed for compatible professional wall- and wire-sawing systems. Its 25 kW hydraulic output, water-cooled motor and heavy-duty wheeled design provide reliable full-capacity performance with convenient jobsite positioning.
Power
25 kW
Max. Hydraulic Flow
65 L/min
Weight
140 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Maximum Machine Life and Power
Hydraulic oil is cooled by a large 15-litres oil reservoir and 23cm fan to provide maximum machine life and power.
Adjustable Handles
The handles are vertically adjustable and the power pack can be laid down on its handles during transport as well as operation.
Easy Hose Connection
Pressure compensation system makes it easy to connect the hoses with less effort.
Flexible Power Setup
Can be operated on both 32 A and 63 A fuses.
Motor & Power Supply
| Power Source | Corded Electric |
| Motor Type | Water-Cooled Electric Motor |
| Specified Hydraulic Output | 25 kW / 33.5 hp |
| Rated Voltage | 400 V |
| Rated Frequency | 50 Hz |
| Rated Current | 63 A |
| Supported Fuse Ratings | 32 A / 63 A |
| Power Connector | 4-Pin |
| Radio Control | Included |
Hydraulic System
| Maximum Hydraulic Oil Flow At 63 A | 65 L/min |
| Maximum Hydraulic Pressure | 230 bar |
| Reduced Hydraulic Output | 9 kW |
| Reduced Hydraulic Oil Flow | 40 L/min |
| Reduced Hydraulic Pressure | 140 bar |
| Hydraulic Oil Reservoir | 15 L |
| Hydraulic Oil Cooling | Water-Cooled Heat Exchanger |
| Cooling Fan Diameter | 23 cm |
| Pressure Compensation System | Yes |
Control & Operation
| Control Type | Remote Control |
| Signal Transmission | Wireless / Cable |
| Emergency Stop | Yes |
| Hydraulic Output Selection | Adjustable According To Connected Equipment |
| Peripheral Power Outlet | 230 V Outlet On Compatible 5-Pin Variants |
Compatibility
| Compatible Wire Saw | Husqvarna CS 2512 |
| Compatible Wall Saw | Husqvarna WS 463 |
| Suitable Equipment Type | Compatible Husqvarna Hydraulic Sawing Equipment |
Features
| Vertically Adjustable Handles | Yes |
| Heavy-Duty Single-Axle Trolley | Yes |
| Easy Hose Connection | Yes |
| Low Centre Of Gravity | Yes |
| Transport Position On Handles | Yes |
| Flexible Power Setup | Yes |
| Lifting Eye | Yes |
Weight
| Weight Including Hydraulic Oil | 140 kg |
Sound & Noise
| Sound Power Level, Measured | 97 dB(A) |
| Sound Power Level, Guaranteed | 101 dB(A) |
| Sound Pressure Level At Operator's Ear | 78 dB(A) |
