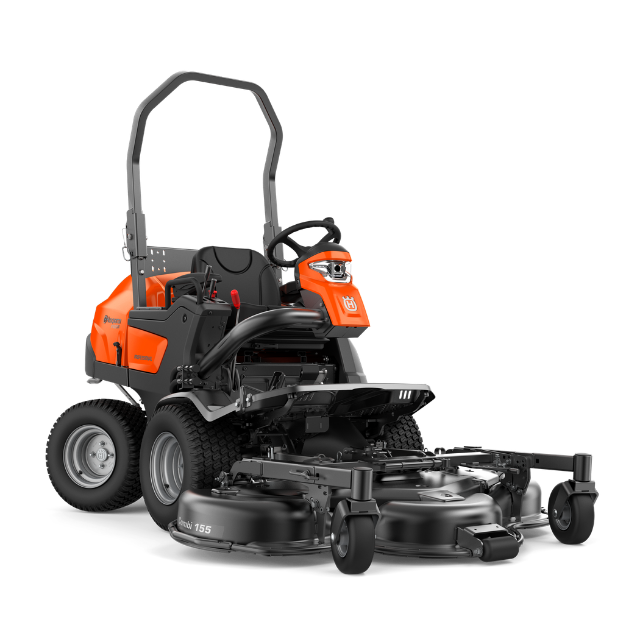

P 525DX

P 525DX

High-capacity diesel-powered front mower offering unbeatable manoeuvrability and productivity in complex and narrow environments as well as in larger-sized areas. The commercial graded transmission gives uncompromised traction and slope stability. The machine’s compact size and high transport speed makes it suitable both for stationary and mobile application for municipalities, contractors, housing agencies etc. Thanks to the front-mounted cutting deck the operator has perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc.

Power Output Weight (excluding cutting equipment)
17.8kW 677kg

Features

  • Min. clearance circle by articulated steering
  • Front-mounted cutting deck for precise trimming
  • Unbeatable mowing accessibility
  • Compact design for easy operation in narrow spaces
  • Commercial graded transmission
  • Excellent hillside driving performance
  • Accessories for versatile year/round usage
  • Optional cabin
  • All-Wheel Drive secure traction on all areas
  • Shaft PTO for maximum efficiency
  • Easy tool exchange by unique quick coupling
  • 3-cylinder Kubota diesel engine with full pressure lubrication.
  • Ergonomic operator’s interface
  • Hydraulic power steering for increased comfort
  • Easy-access controls for user comfort
  • Tilting hood makes maintenance quick and easy
  • Greasable mandrels for easy maintenance
  • Off-set cutting deck for easy close-up trimming
  • Service postion for easy deck maintenance.
  • Heavy-duty, durable steel ladder frame
  • Durable cast iron rear wagon
  • Heavy-duty deck design
  • Equally sized wheels for a comfortable ride
  • Designed to deliver a cutting result in top-class,offering two cutting methods in one deck:mulching or rear discharge (mulch plug removed)
Mowing accessibility

The low profile front-mounted cutting deck gives unbeatable accessibility in under fences. bushes. park benches etc.

Trimming ability

The front-mounted cutting deck gives excellent overview of the working area. enabling precise. close-up trimming.

Articulated steering

The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.

Compact design

The compact size together with the unique articulated steering makes it easy to manoeuvre the machine in narrow spaces and tricky areas.

Specifications

Battery
Battery capacity 62Ah
Battery manufacturer Exide
Battery type Lead-Acid
Battery voltage 12 V
Quantity of batteries/battery pack 1 pcs
Capacity
Net power at reset rpm 3000 rpm
Net power at preset rpm Energy 17.8 kW
Power output 17.8 kW
Speed forward max 19 km/h
Speed reverse max 15 km/h
Dimensions
Article gross weight 757000 g
Article net weight 677000g
Base machine, height 133 cm
Base machine, height (ROPS down) 133 cm
Base machine, height (ROPS up) 203.3 cm
Base machine, length 207.8 cm
Base machine, width 115.3 cm
Gross weight towed 350 kg
Ground clearance 140 mm
Seat back height High
Tyre manufacturer Kenda
Weight 677 kg
Weight(excl. cutting equipment 677 kg
Wheelbase  106 cm
Engine
Cylinder displacement 1123cm3
Cylinders 3
Engine cooling Liquid
Engine name D1105
Motor/engine manufacturer Kubota
Motor/engine model Diesel horizontal axle
Transmission type Hydrostatic AWD
Equipment
12V outlet Yes
Air filter type Heavy-Duty Canister Style
All-Wheel Drive(AWD) Yes
Blade engangement Electric clutch
Cargo holder No
Cup holder No
Drive method Pedal-operated
Drive system All-wheel drive
Foldable seat Yes
Frame construction type Ladder frame
Headlights Yes
Hour meter type Digital
Hydraulic equipment lift Yes
Optional cutting decks Combi 132, Combi 165
Parking brake, type Disc
Pivoting rear axle Yes
Power steering Yes
Seat suspension Yes
Seat type Full suspension, arm rests
Service position Yes
Wheelbase 106cm
Lubricants
Fuel Consumption 270g/kWh
Fuel tank location Side (Single)
Oil cooler Yes
Oil filter Yes
Oil type SAE10W40
Power/fuel type Diesel
Engine cooling Liquid
Emission Data EU
Exhaust emissions (CO2 EU V) 1018 g/kWh
