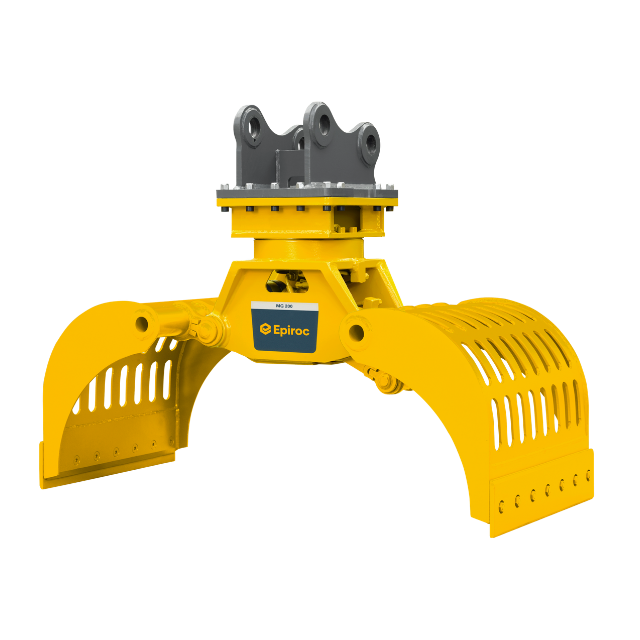

The multi grapple MG 200 offers low operating weight with high gripping volume. Maximum loading performance and high gripping force help to increase the demolition performance as well. Hydraulic rotary drive, grapple and wear parts made of carbon steel, and high grapple capacity. Replaceable blades.
| Jaw opening (max) | Weight |
| Â 900 mm | 169 kg |
| Hydraulics | |
| Hydraulic oil flow | 25 l/min |
| Specifications | |
| Type of tool | Grapplers |
| Rotational angle | 360° |
| Incoming pressure (max) | 300 bar |
| Operating pressure (max) | 250 bar |
| Dimensions | |
| Jaw depth | 335 mm |
| Jaw width | 450 mm |
| Jaw opening (min) | 0 mm |
| Jaw opening (max) | 900 mm |
| Volume | 70 l |
| Product size length | 967 mm |
| Product size width | 817 mm |
| Product size height | 450 mm |
| Weight | 169 kg |
