Hydraulics

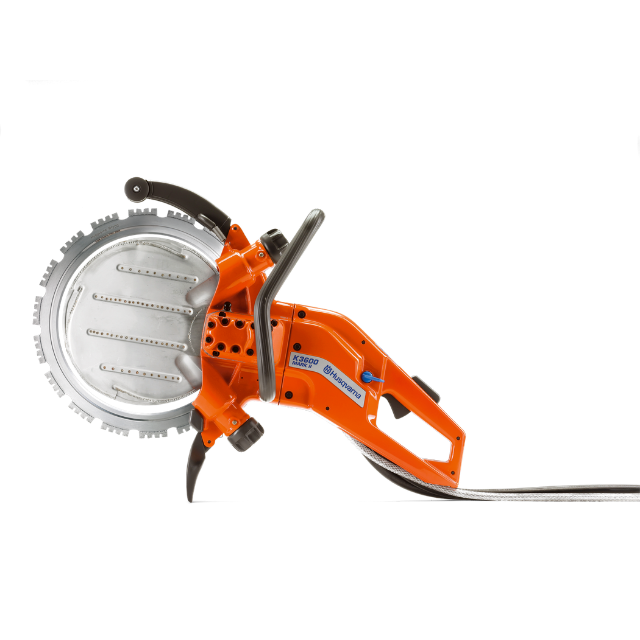

K 3600 Mk II
Hydraulic power cutter K 3600 MK II provides eccentric drive of the blade meaning the cutting depth is a huge 270 mm. Suitable for a wide window of applications. It’s particularly well-suited for working indoors due to no exhaust fumes and low noise levels.
| Output power | Weight |
| 4.3 kW | 8.3 kg |
Features
- Deep cutting
- No fumes and low noise levels
- Light with high power
- Adjustable front handle
- Wet cutting kit
- Adjustment to openings
- Blocks, curbstones and pavers
- Cast concrete
- Deep cutting
- Floors and walls
- Pipe trenches
- Pipes
 |
Deep cutting
Thanks to the peripheral drive you can cut far deeper than with a traditional power cutter. The cutting depth of 270 mm is sufficient to cut through a normal wall from one side only.
|
 |
No fumes and low noise level
With no fumes and low noise levels, hydraulic cutters are ideal for both indoor and outdoor jobs. |
 |
Light with high power
Hydraulics is an excellent way to transfer high power without the cutter becoming heavy. |
 |
Adjustable front handle
Facilitates manoeuvrable cutting. |
Specifications
| Engine | |
| Output power | 4.3 kW |
| Power source | Hydraulic |
| Cutting Equipment | |
| Cutting depth (max) | 270 mm |
| Blade diameter (max) | 370 mm |
| Blade thickness (max) | 5.6 mm |
| Peripheral speed (max) | 55 m/s |
| Coolant | Wet |
| Dimensions | |
| Weight | 8.3 kg |
| Product size length | 727 mm |
| Product size width | 175 mm |
| Product size height | 410 mm |
| Hydraulics | |
| Hydraulic oil flow | 40 l/min |
| Hydraulic pressure (max) | 150 bar |
| Sound and noise | |
| Sound power level guaranteed (LWA) | 111 dB(A) |
| Sound pressure level at operations ear | 99 dB(A) |
| Vibrations | |
| Vibrations left/front handle | 4.3 m/s² |
| Vibrations right/rear handle | 6 m/s² |
