FS 500 E
Husqvarna Construction · Floor Saws
Husqvarna Construction
FS 500 E
By Husqvarna Construction
· SKU: UHCN FS500E 967963601

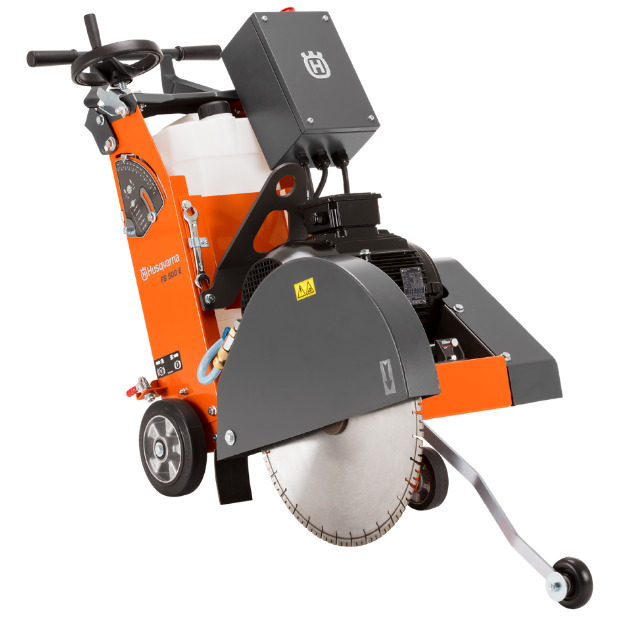

The Husqvarna FS 500 E is a compact electric push floor saw designed for efficient cutting of concrete and asphalt in indoor or low-emission work environments. Its 7.5 kW electric motor, 500 mm blade capacity and 190 mm cutting depth provide strong cutting performance with simple handling and water-cooled operation.
Power
7.5 kW
Max. Cutting Depth
190 mm
Weight
145 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
Zero CO2 Emissions During Use
Enjoy the freedom of working with an electric machine. Explore the potential of new applications by running the machine indoors or in urban areas where emissions or noise levels might be regulated.
Easy To Operate and Service
Automatic soft start, phase error detection and phase shift plug ensures ease of use. Easy accessible daily greasing of blade shaft.
Large Integrated Water Tank
Quick connection for water hose to the blade guard. No tools required for dis-assembly.
Easy to Transport
Compact saw that is easy to lift.
Motor
| Power Source | Corded Electric |
| Motor Power | 7.5 kW |
| Rated Voltage | 400 V |
| Rated Current | 14 A |
| Power Supply | 3 Phase, 16 A CEE With Phase Reverse |
| Motor Speed | 2,935 rpm |
Cutting Equipment
| Maximum Blade Diameter | 500 mm |
| Maximum Cutting Depth | 190 mm |
| Maximum Spindle Speed | 2,435 rpm |
| Arbor Diameter | 25.4 mm |
| Blade Flange Diameter | 89 mm |
| Blade Coolant | Water |
Water System
| Blade Cooling | Water |
| Water Tank | Included |
| External Water Connection | Yes |
Drive & Operation
| Drive System | Push |
| Blade Height Adjustment | Screw Feed |
| Handle Type | Adjustable Foldable Handle |
| Blade Guard Position | Can Be Mounted On Left Or Right Side |
Features
| Electric Push Floor Saw Design | Yes |
| Low Vibration Design | Yes |
| Easy Transport Design | Yes |
| Integrated Water Tank | Yes |
| Adjustable Handles | Yes |
| Depth Control | Manual |
Dimensions
| Product Length | 1,180 mm |
| Product Width | 560 mm |
| Product Height | 1,000 mm |
| Nominal Weight, Uncrated | 145 kg |
| Maximum Operating Weight | 175 kg |
Sound & Noise
| Sound Power Level, Guaranteed | 102 dB(A) |
| Sound Pressure Level At Operator's Ear | 86 dB(A) |
Vibration
| Right Handle Vibration Level | 4.1 m/s² |
| Left Handle Vibration Level | 4.7 m/s² |
Product Brochure
Husqvarna Construction FS 500 E
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
