Features
- Superior Remote Control
- Automatic Greasing
- Easy Access For Service
- Excellent Thermal Management
- Powerful Illumination
- Manages Steep Inclines
 |
Small Footprint

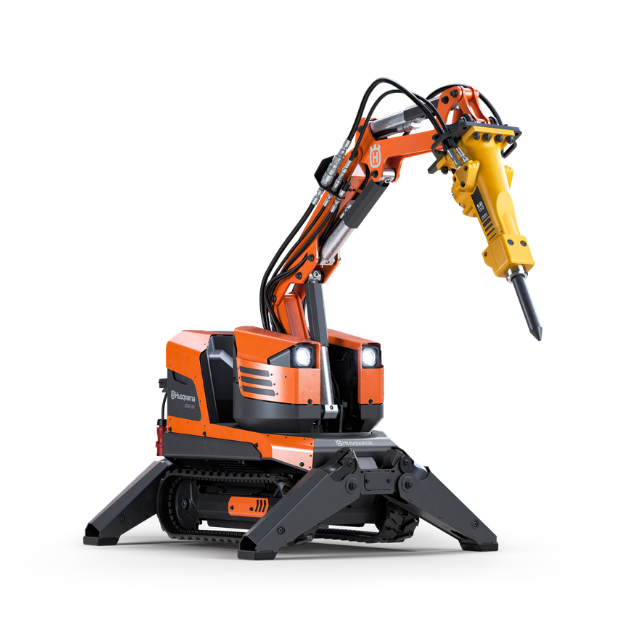

The DXR 95 fits in an ordinary van – perfect for construction and industrial applications.
|
 |
Heavy-duty Arm System
The arm is robust, strong and durable yet low in weight. |
 |
Superb Power-to-weight Ratio
Compact and powerful, yet low in weight. |
 |
Protection of Vital Parts
The electric motor, hoses and cables are protected by the robust lower chassis. |
Specifications
| General | |
| Max transport speed | 3 km/h |
| Max slope angle | 30° |
| Rotation Degrees | 250° |
| Reach Up | 3.2 m |
| Reach Forward | 2.7 m |
| Hydraulic System | |
| Volume (Hydraulic System) | 30 l |
| Max Pump Flow | 0-32 l/min |
| Standard Pressure | 180 bar |
| Increased Main Pressure | 250 bar |
| Motor | |
| Motor Power | 9.8 kW |
| Speed | 1417 rpm |
| Rated Voltage | 380-420 V |
| Rated Current | 16 A |
| Dimensions | |
| Width | 600 mm |
| Length | 1,510 mm |
| Height | 887 mm |
| Weight | 589 kg |
