DMS 240
Husqvarna Construction · Concrete Core Drills
Husqvarna Construction

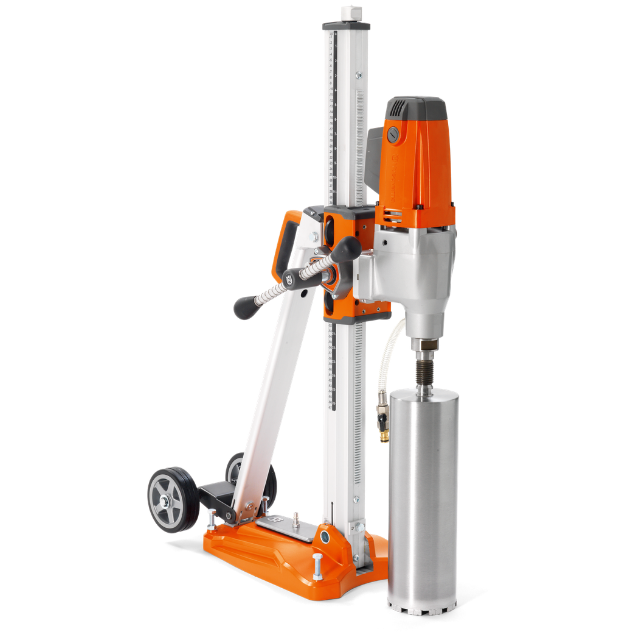

DMS 240
By Husqvarna Construction
· SKU: UHCN DMS240 965173630
DMS 240 is an electric drill motor and stand system for a huge variety of core drilling applications. It is the most powerful system in our drill motor stand range. The stand is easy to tilt, the back support provides reliable and stable angle drilling, saving you setup time and body stress. This system can be used for drilling ventilation and plumbing channels, waste evacuation pipes as well as barrier and road signs.
Power
2.4 kW
Max. Diameter
250 mm
Weight
27.5 kg
Authorised Husqvarna Construction Distributor
Parts & Servicing Available
Fast Response
User-friendly Base Plate
Lightweight base plate made of aluminium with integrated vacuum base, means fast setup with no damages to the surroundings.
Easy Transportation
The stand is equipped with transport wheels.
Angle Drilling
Drilling holes in setpless adjustable angles.
Stitch Drilling
Drilling multiple holes next to each other to make openings.
Motor
| Power Source | Corded Electric |
| Motor Type | Single-Phase Electric Motor |
| Rated Input Power | 2.4 kW |
| Rated Voltage | 220–240 V |
| Rated Frequency | 50 Hz |
| Rated Current At 230 V | 10 A |
| Number Of Mechanical Gears | 2 |
| Spindle Speed Without Load, Gear 1 | 390 rpm |
| Spindle Speed Without Load, Gear 2 | 890 rpm |
Drilling Capacity
| Maximum Drill Bit Diameter | 250 mm / 10" |
| Drilling Method | Wet Drilling |
| Suitable Materials | Concrete, Brick And Stone |
| Suitable Drilling Positions | Vertical, Horizontal And Angled |
| Column Angling | 0–60° |
Tool Connection
| Internal Spindle Thread | G 1/2" |
| External Spindle Thread | 1 1/4"-7 UNC |
| Additional External Spindle Thread | 5/8"-11 UNC |
Water System
| Motor Cooling | Water-Cooled |
| Maximum Water Pressure | 8 bar |
| Water Connector | G 1/4" |
Drill Stand
| Base Plate Material | Aluminium |
| Base Plate Type | Integrated Vacuum Base |
| Maximum Travel Length | 686 mm / 27" |
| Feed Carriage Gearing | 1:1 / 2.5:1 |
| Transport Wheels | Included |
| Removable Wheel Kit | Yes |
| Rear Support | Yes |
| Depth And Angle Scale | Yes |
Features
| Overload Protection | Yes |
| Thermal Protection | Yes |
| Adjustable Feed Carriage Gearing | Yes |
| Stepless Angle Adjustment | Yes |
| Stitch Drilling Capability | Yes |
| Horizontal Drilling Capability | Yes |
| Easy Transportation | Yes |
Dimensions
| Drill Stand Height | 1,052 mm |
| Drill Stand Width | 266 mm |
| Drill Stand Depth | 545 mm |
| Drill Motor Weight | 5.9 kg |
| Drill Stand Weight | 14.5 kg |
| Complete System Weight | 27.5 kg |
Sound & Noise
| Sound Power Level, Measured | 106 dB(A) |
| Sound Power Level, Guaranteed | 107 dB(A) |
| Sound Pressure Level At Operator's Ear | 90 dB(A) |
Vibration
| Handle Vibration Level | Less Than 2 m/s² |
Product Brochure
Husqvarna Construction DMS 240
PDF · Click to download
The brochure will open in a new tab. You can save it from there.
