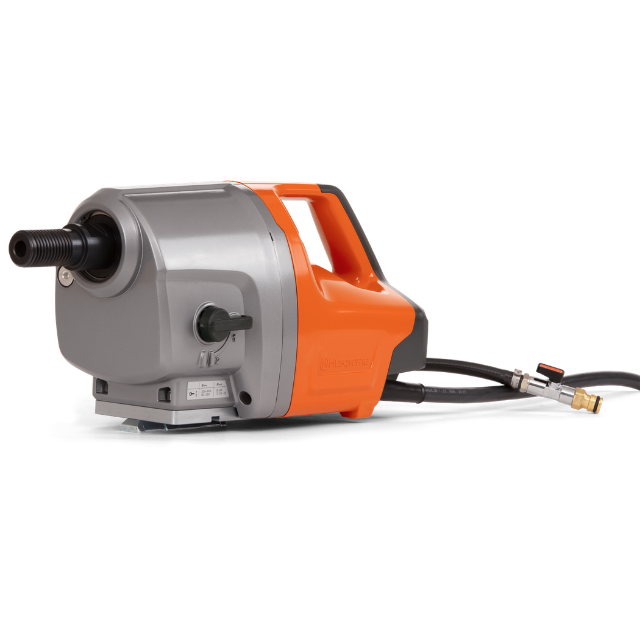

DM 700

DM 700

The high power output, low weight, user-friendly setup and intelligent design makes DM 700 the perfect choice for heavy-duty applications like hard concrete with rebar and where multiple, deep and large diameter is needed.

Rated input power Weight
6 kW 14 kg



Features

  • Higher productivity
  • Minimal service needs
  • Torque boost
  • Adjustable with wide rpm range
  • Durable and ergonomic design
  • Elgard™
  • Extremely powerful
  • Drill with maximum pressure
  • Load indicator
Adjustable with wide rpm range

18-step adjustable rpm range ensures optimal speed for all drill bit dimensions through PP 70.



Minimal service needs

Dust and water proof, water-cooled motor with minimal service requirements.

Drill with maximum pressure

A LED indicator shows the load of the machine, allowing you to always drill at maximum pressure.

Load indicator

The LED indicator shows the load of the machine, allowing the operator to always drill at maximum pressure, for best performance.



Specifications

Motor
Rated input power 6 kW
Phases 1 & 3 ph
Power source Corded
Drilling equipment
Drill bit diameter with stand (max) 600 mm
Recommended drill bit diameter (min) 80 mm
Coolant Wet
Transmission
Number of gearbox speeds 2
Number of electronical gearbox speeds 9
Spindle speed unload gear 1 310 rpm
Spindle speed unload gear 2 675 rpm
Specifications
Water connector G 1 / 4″
Water flow (min) 0.5 l/min
Water pressure (max) 8 bar
Spindle thread (outer) 11/4″ 7 UNC
Dimensions
Weight 14 kg
Product size length 452 mm
Product size width 164 mm
Product size height 215 mm
Sound and noise
Sound power level guaranteed (LWA) 113 dB(A)
Sound power level measured 112 dB(A)
Sound pressure level at operations ear 98 dB(A)
