Features
- Less filter cleanings with Air Injection
- Adjustable chain oil pump
- Quick-release air filter
- Magnesium crankcase designed for professional use
- Maximum durability for tough applications
- LowVib® sparing the user’s arms and hands

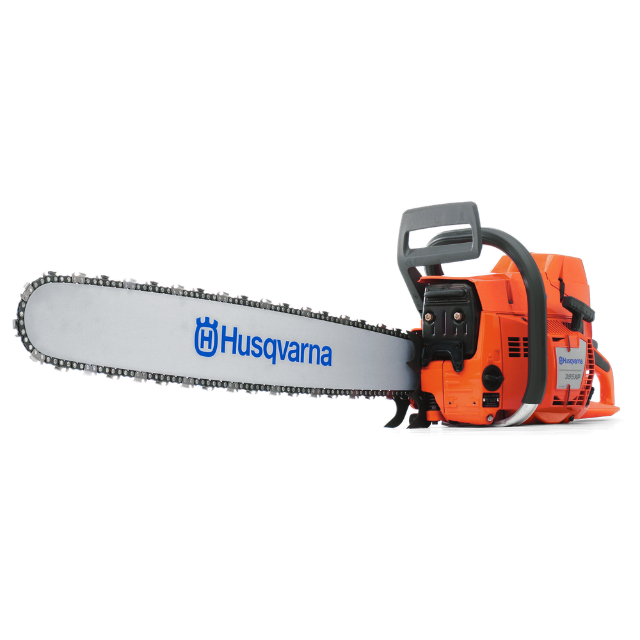

A true professional saw in the larger mid-size class, built for very demanding applications. The crankcase and crankshaft are extra heavy-duty and the carburettor has vibration damping in order to handle high speeds and high loads. The saw combines low weight, high power and rapid acceleration with flexible operation. The XP® G model has both heated handles and carburettor.
Cylinder displacement | Weight |
94 cm³ | 7.9 kg |
Dimensions | |
Weight (excl. cutting equipment) | 7.9 kg |
Engine | |
Cylinder displacement | 94 cm³ |
Electrode gap | 0.5 mm |
Fuel consumption | 470 g/kWh |
Fuel consumption | 2.3 kg/h |
Fuel tank volume | 0.9 l |
Idling speed | 2500 rpm |
Maximum power speed | 8700 rpm |
Power output | 5.2 kW |
Spark plug | Champion RCJ7Y |
Torque, max | 5.9 Nm |
Equipment | |
Bar mount | Large |
Chain speed at 133% of maximum engine power speed | 27.7 m/s |
Pitch | 3/8″, .404″ |
Recommended bar length, max | 90 cm |
Recommended bar length, min | 45 cm |
Sprocket type | Rim 7 |
Lubricant | |
Oil pump capacity Max | 20 ml/min |
Oil pump capacity Min | 15 ml/min |
Oil pump type | Automatic |
Oil tank volume | 0.5 l |
Sound and Noise | |
Sound power level, guaranteed (LWA) | 115 dB(A) |
Sound power level, measured | 114 dB(A) |
Sound pressure level at operators ear | 102 dB(A) |
Vibration | |
Equivalent vibration level (ahv, eq) front handle | 6.5 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 10.2 m/s² |
Basic model | H395XP |
Engine Family EPA | JHVXS.0945AD |
Approval certificate number | e5*97/68SH3G3*2002/88*0059*00 (I) |
Basic model | H395XP |
Exhaust emissions (CO average) | 263.62 g/kWh |
Exhaust emissions (CO FEL) | 536 g/kWh |
Exhaust emissions (CO average) | 771 g/kWH |
Exhaust emissions (HC+NOx FEL) | 145 g/kWh |
Exhaust emissions (HC average) | 119.24 g/kWh |
Exhaust emissions (NOx average) | 1.80 g/kWh |
Useful life category | 300 hrs |
EU type approval | Stage 1 |
Exhaust emissions (CO average) | 417.11 g/kWh |
Exhaust emissions (CO average) | 714.1 g/kWh |
Exhaust emissions (HC average) | 123.18 g/kWh |
Exhaust emissions (NOx average) | 1.06 g/kWh |
Material content, other plastics | 0.055 kg |
Material content, PBT | 0.01 kg |
Material content, PE | 0.035 kg |
Material content, PP | 0.066 kg |
Material content, POM | 0.067 kg |
Material content, silicone rubber | 0.013 kg |
Material content, nitrile rubber | 0.015 kg |
Material content, hydrogenated nitrile rubber | 0.009 kg |
Material content, fluorosilicone rubber | 0.0001 kg |
Material content, fluorocarbon rubber | 0.028 kg |
Material content, cloroprene rubber | 0.016 kg |
